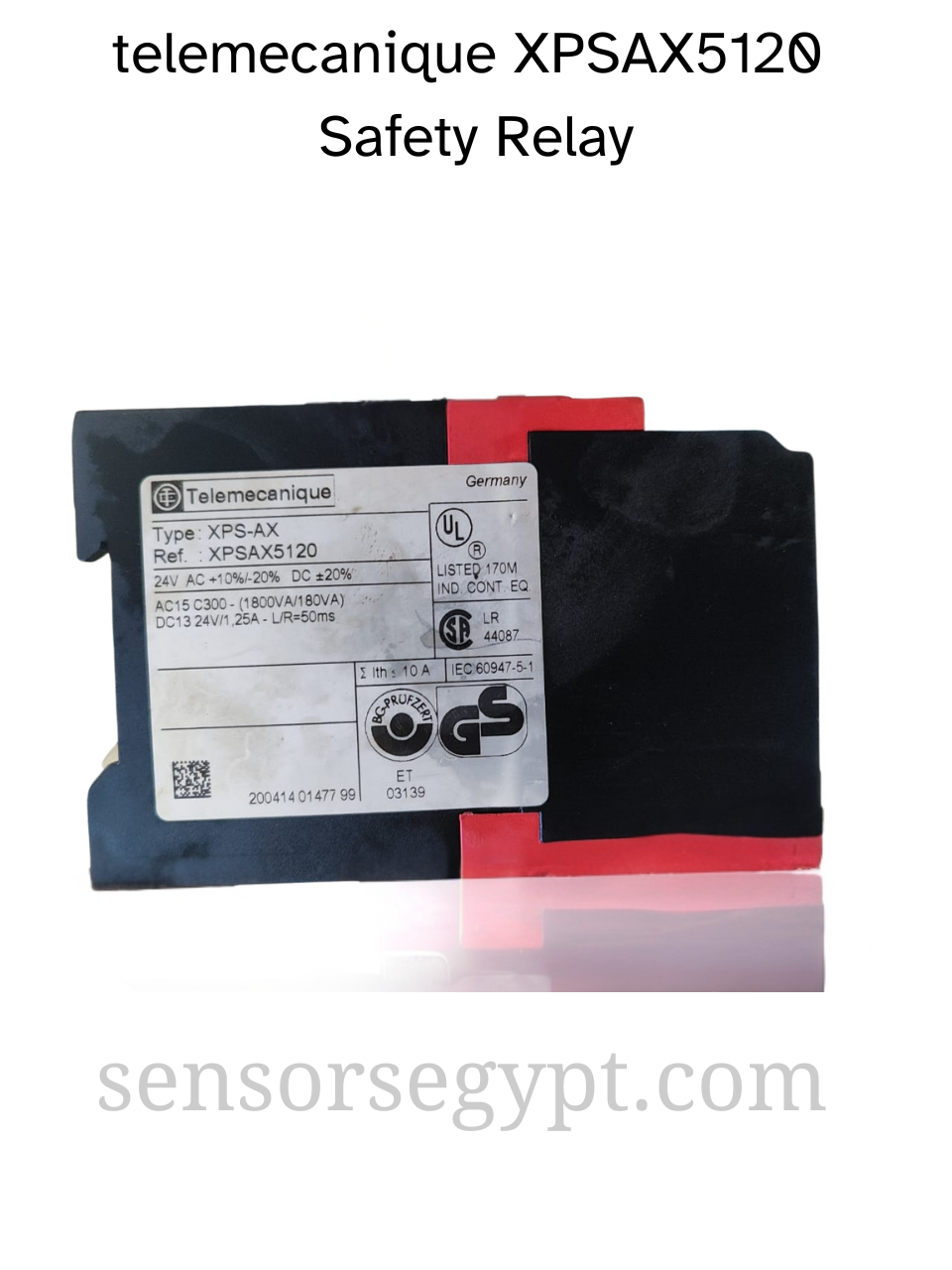

telemecanique Preventa Safety Relay Expansion



Type: XPS-AX Reference: XPSAX5120

---



1. General Description



The XPSAX5120 is a safety output expansion module from the Telemecanique Preventa family (now part of Schneider Electric). It is designed to be used in conjunction with a primary safety relay (e.g., XPS-AK, XPS-AR) to increase the number of available safety outputs. This module does not perform any safety logic itself; it is controlled directly by the master safety relay, and its outputs mirror the state of the master.

This allows for the safe switching of a larger number of circuits or higher-power loads within a single safety function, such as an emergency stop or guard switch circuit.



Key Features



• Output Expansion: Adds five additional normally open (NO) safety-rated relay outputs to a safety system.
• Simple Integration: Connects directly to a primary safety relay for straightforward system expansion.
• Forcibly Guided Contacts: The internal relays use forcibly guided (or mechanically linked) contacts, a key requirement for safety circuits.
• LED Status Indication: An integrated LED provides a visual indication of the output status.
• Compact Design: The 22.5 mm wide housing saves space on a DIN rail.

---



2. Technical Specifications





Power Supply





Outputs





Contact Ratings (Per Output)





General & Environmental
