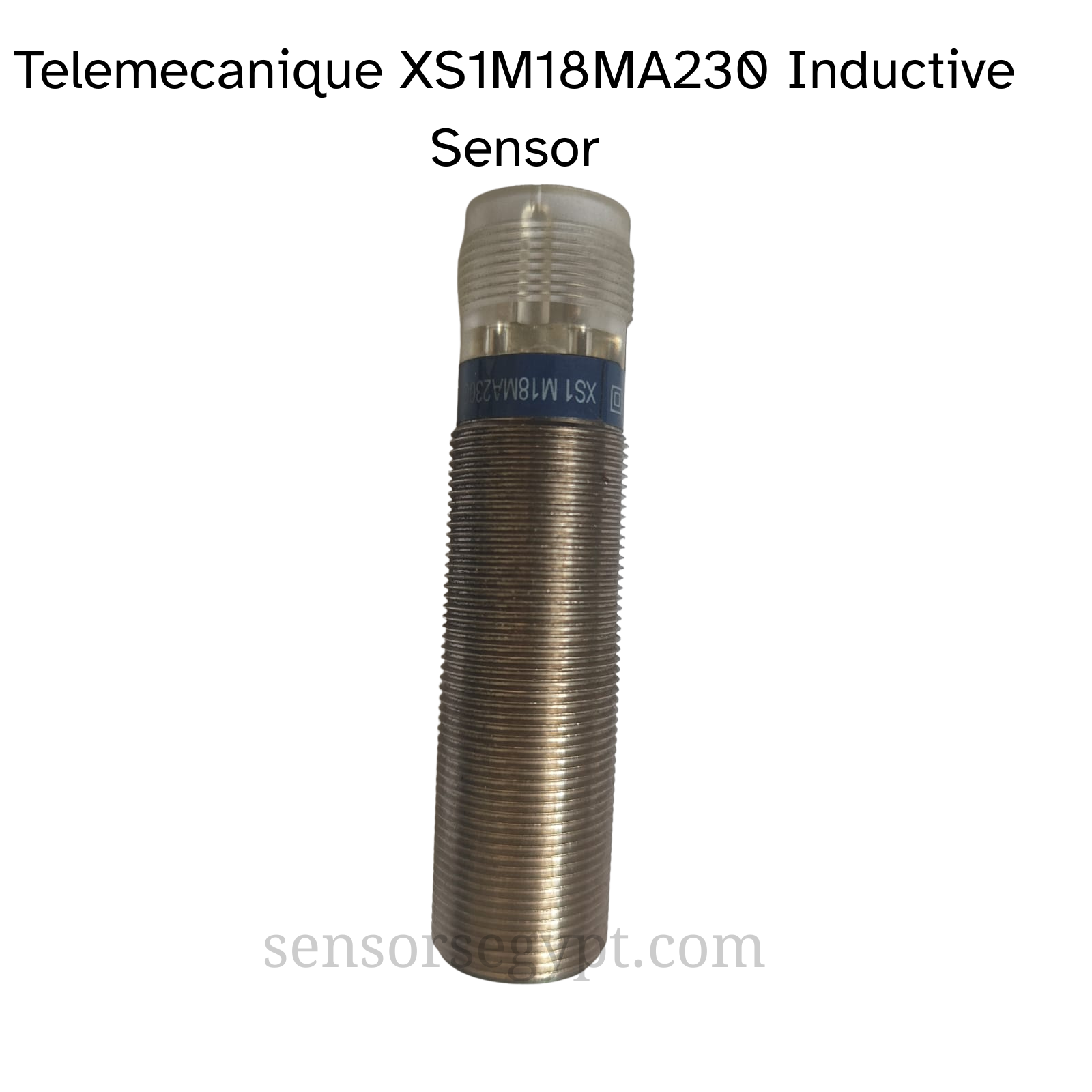

Telemecanique OsiSense XS Inductive Sensor
Model: XS1M18MA230
1. General Description
The Telemecanique XS1M18MA230 is a cylindrical, M18 threaded inductive proximity sensor from the OsiSense XS series (now part of Schneider Electric). It is designed for the non-contact detection of metallic objects in industrial machinery and automation systems.
A key feature of this model is its ability to operate directly on AC power, eliminating the need for a separate DC power supply. Its robust, nickel-plated brass housing makes it suitable for a wide range of standard industrial applications. This specific model is flush-mountable and provides a Normally Open (NO) output.
Key Features 🎯
- AC Operation: Designed for 2-wire connection to a 24…240V AC power source.
- Standard M18 Body: Industry-standard M18 threaded cylindrical housing for versatile mounting options.
- Flush Mountable: Can be mounted flush in metal without affecting its sensing performance.
- Robust Construction: Features a durable nickel-plated brass body.
- Visual Indication: Includes an integrated LED for a clear visual indication of the output state.
2. Technical Specifications
Electrical Data
| Parameter | Value |
| Sensing Distance (Sn) | 5 mm |
| Operating Voltage | 24…240 V AC (50/60 Hz) |
| Output Type | 2-Wire AC |
| Output Function | Normally Open (NO) |
| Switching Frequency | ≤ 25 Hz |
| Voltage Drop (Closed state) | ≤ 5.5 V |
| Load Current Range | 5…200 mA |
Mechanical & Environmental Data
| Parameter | Value |
| Housing Style | M18 x 1 Threaded Cylindrical |
| Housing Material | Nickel-Plated Brass |
| Mounting | Flush Mountable (Shielded) |
| Enclosure Protection | IP67 |
| Connection | M12 Male Connector (4-pin, using 2 pins) or other connector type |
| Ambient Temperature | -25°C to +70°C |
3. Wiring
As a 2-wire AC device, the sensor is connected in series with the load (e.g., a relay coil or PLC input) across the AC supply lines.
Typical Connection:
AC Line (L1) → Sensor → Load → AC Neutral (N)
It functions like a simple switch in the circuit, closing the circuit to energize the load when a metal target is detected.
