Key Specifications



• Brand: Telemecanique Sensors (Schneider Electric)

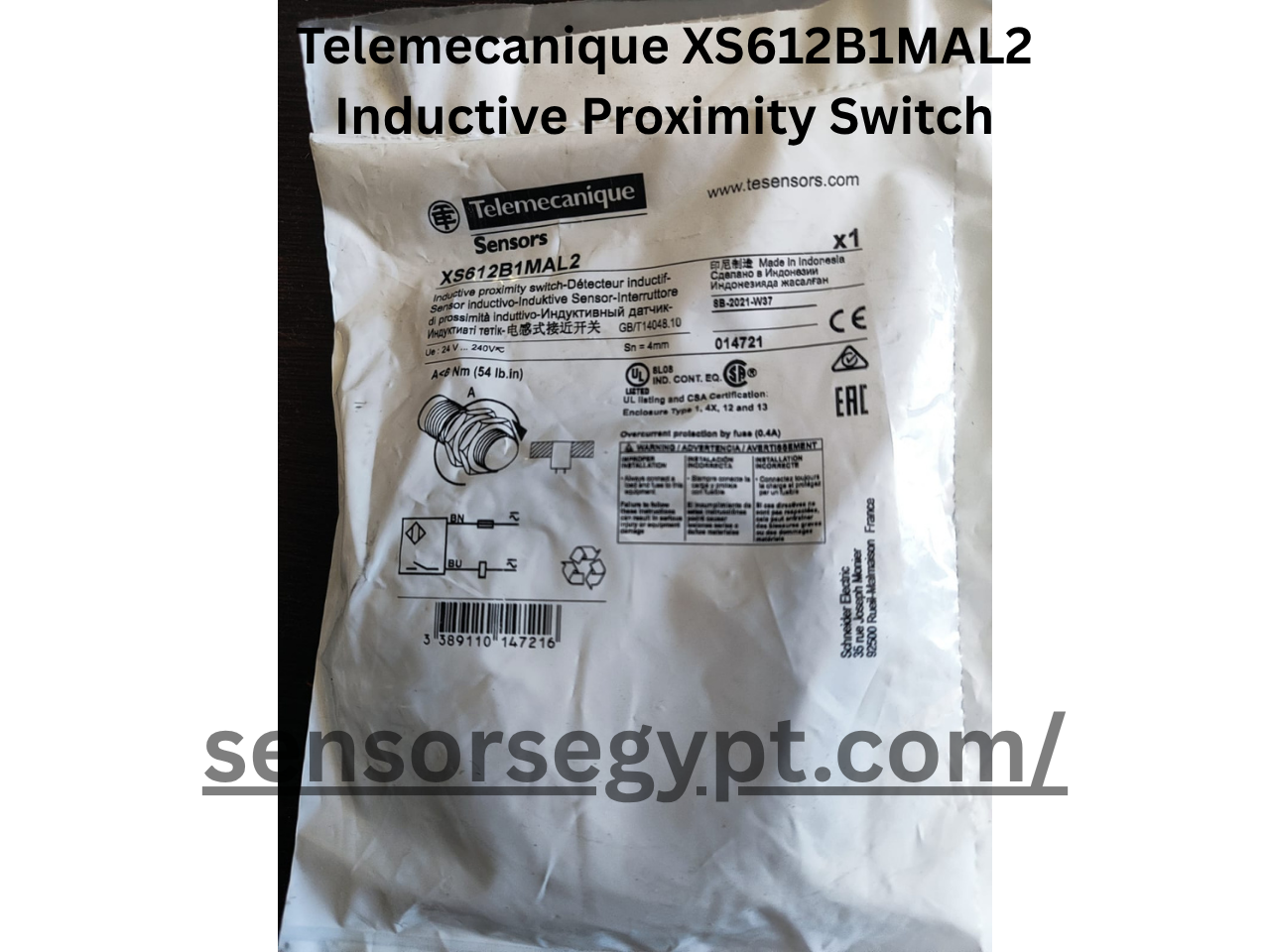

• Model Number: XS612B1MAL2
• Sensor Type: Inductive Proximity Switch (AC Type)
• Nominal Sensing Distance (Sn​): 4 mm

---



Electrical Data



• Operating Voltage (Ue​): 24V to 240V AC (Alternating Current).
• Output Type: 2-wire AC, Normally Open (NO).
  • Important Note: This 2-wire sensor is wired in series with the load it is controlling (like a contactor coil, relay, or PLC AC input), similar to a standard mechanical switch. It does not have separate power and signal wires.
• Installation Warning: The packaging explicitly states that overcurrent protection by a 0.4A fuse is required during installation. Failure to do so can result in damage.

---



Mechanical & Environmental Data



• Body Size: M12 (inferred from the “12” in the model number and torque rating).
• Maximum Tightening Torque: 6 Nm (Newton-meters)
• Enclosure Rating: Type 1, 4X, 12, and 13 (Provides protection against dust, water, and oil).

---



Manufacturing & Certifications



• Manufacturer: Schneider Electric Industries SAS
• Made in: Indonesia
• Certifications: UL, CSA, CE, and EAC.
