Main

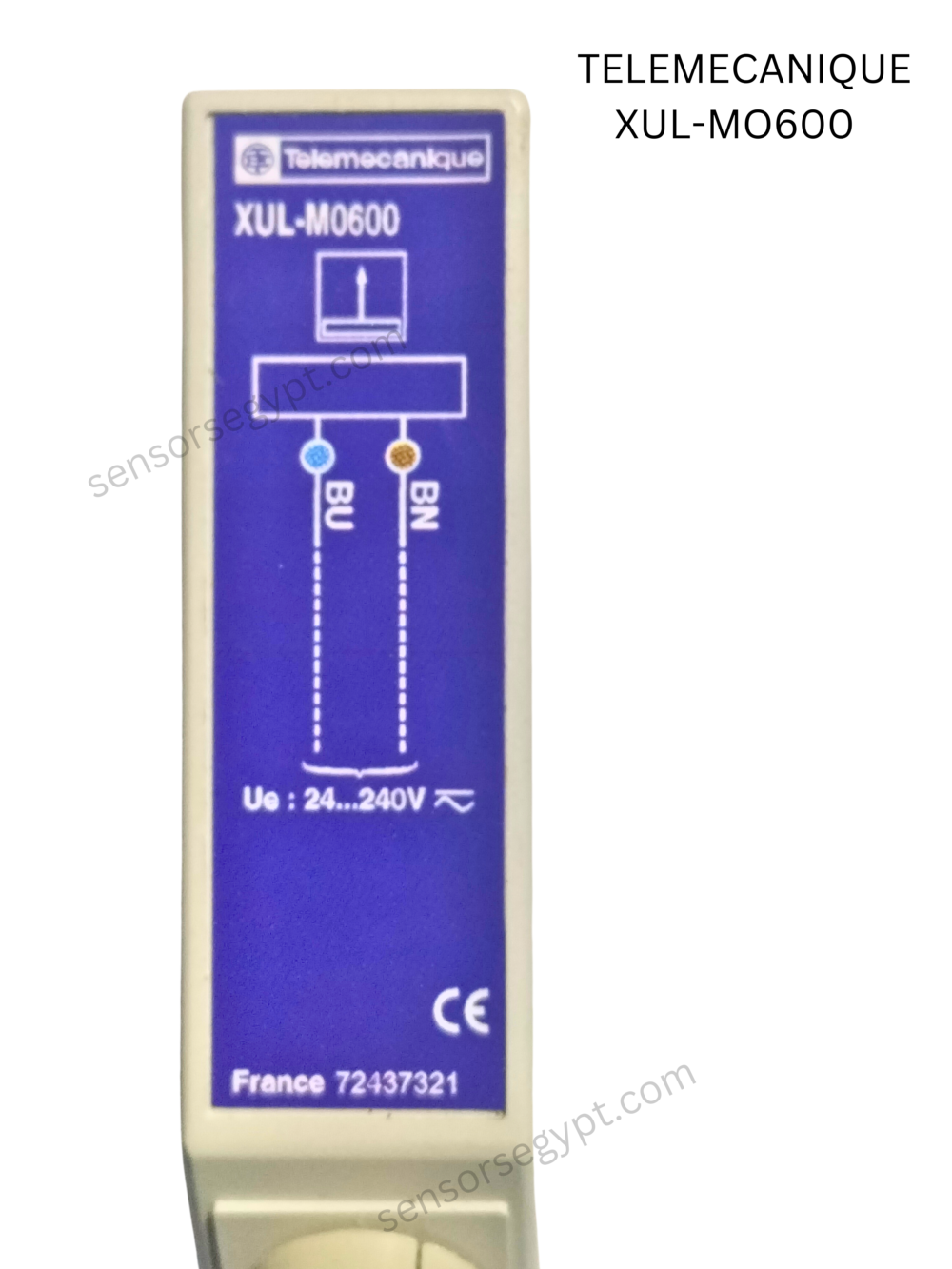

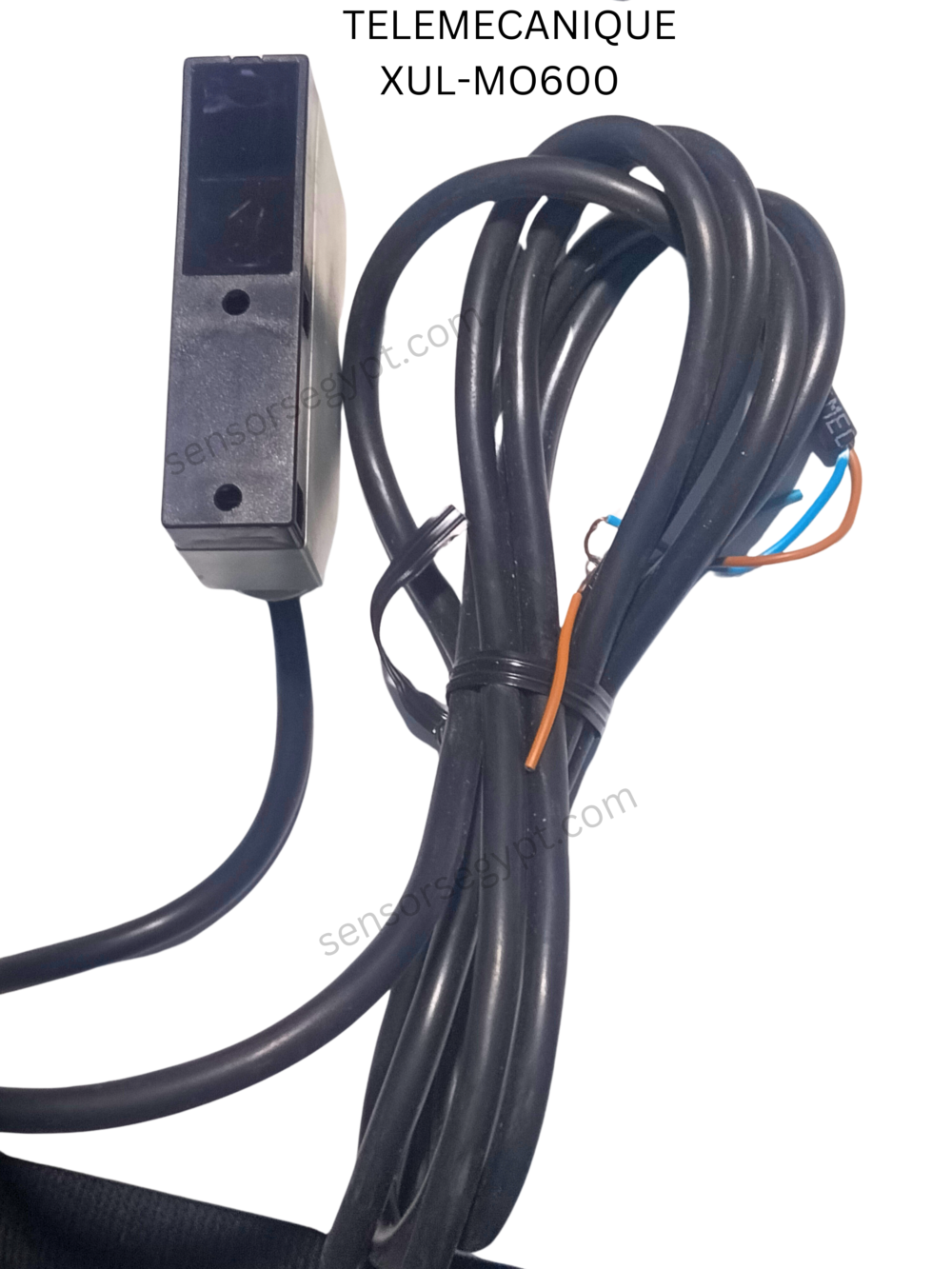

Range of Product Telemecanique Photoelectric sensors XU
Series name General purpose single mode
Electronic sensor type Photo-electric sensor transmitter
Sensor name XUL
Sensor design Compact
Detection system Thru beam
Material Plastic
Supply circuit type AC/DC
Wiring Technique 2-wire
Electrical connection Cable
Cable length 6.6 ft (2 m)
Emission Infrared thru beam
[Sn] nominal sensing
distance
26.2 ft (8 m) thru beam need a receiver
Complementary
Enclosure Material ABS
Lens material PMMA
Cable composition 2 x 0.34 mm²
Wire insulation material PVC
Cable outer diameter 0.2 in (6 mm)
[Us] rated supply voltage 24…240 V AC/DC
Supply voltage limits 20…264 V AC/DC
Switching capacity in mA 0.5 A
Current consumption <= 5 mA
Maximum delay first up 60 ms
Setting-up Without sensitivity adjustment
Electrical durability 500000 cycles 0.4 60 cyc/mn 250 V
Depth 1.8 in (45 mm)
Height 2.8 in (70 mm)
Width 0.7 in (18 mm)
Net Weight 0.430 lb(US) (0.195 kg)
Environment
Product Certifications CE
Ambient Air Temperature for Operation -13…131 °F (-25…55 °C)
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Vibration resistance 7 gn +/- 2 mm 10…55 Hz) IEC 60068-2-6
Shock resistance 20 gn 11 ms) IEC 60068-2-27
IP degree of protection IP67 IEC 60529
IP671 NF C 20-010
