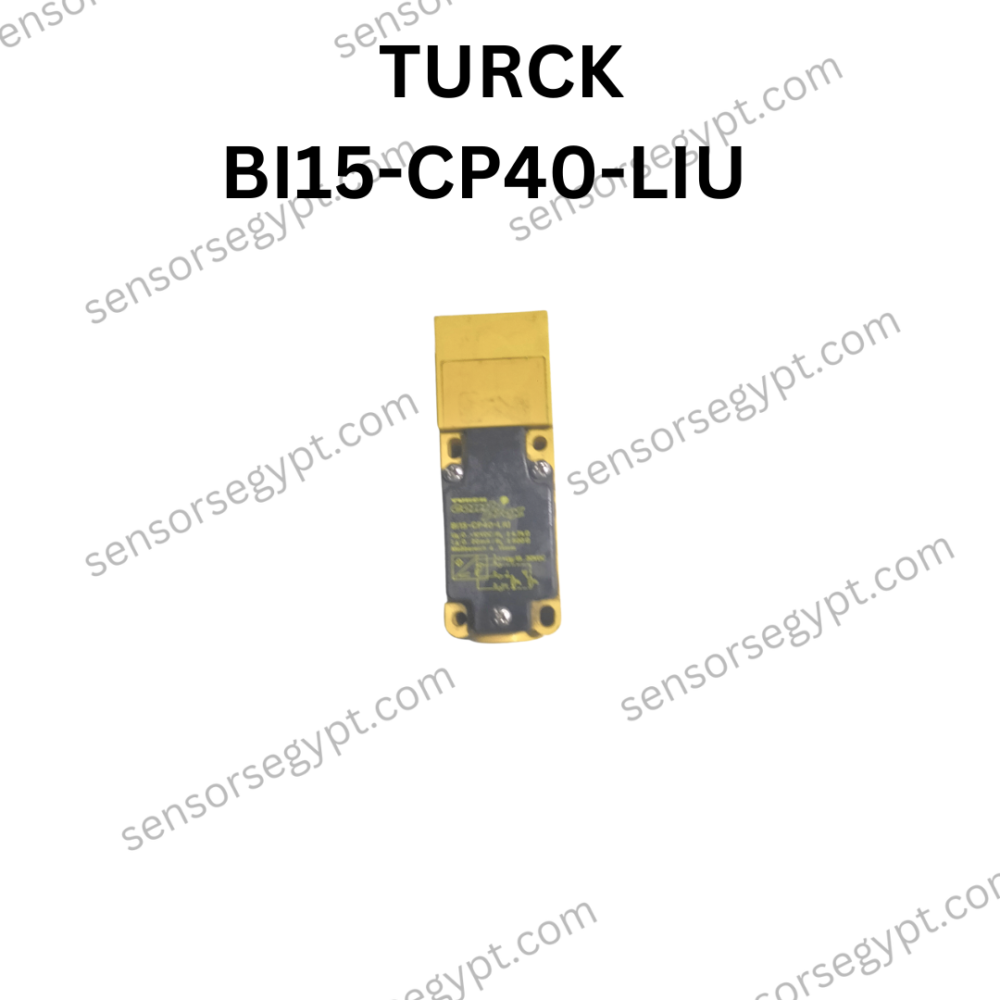

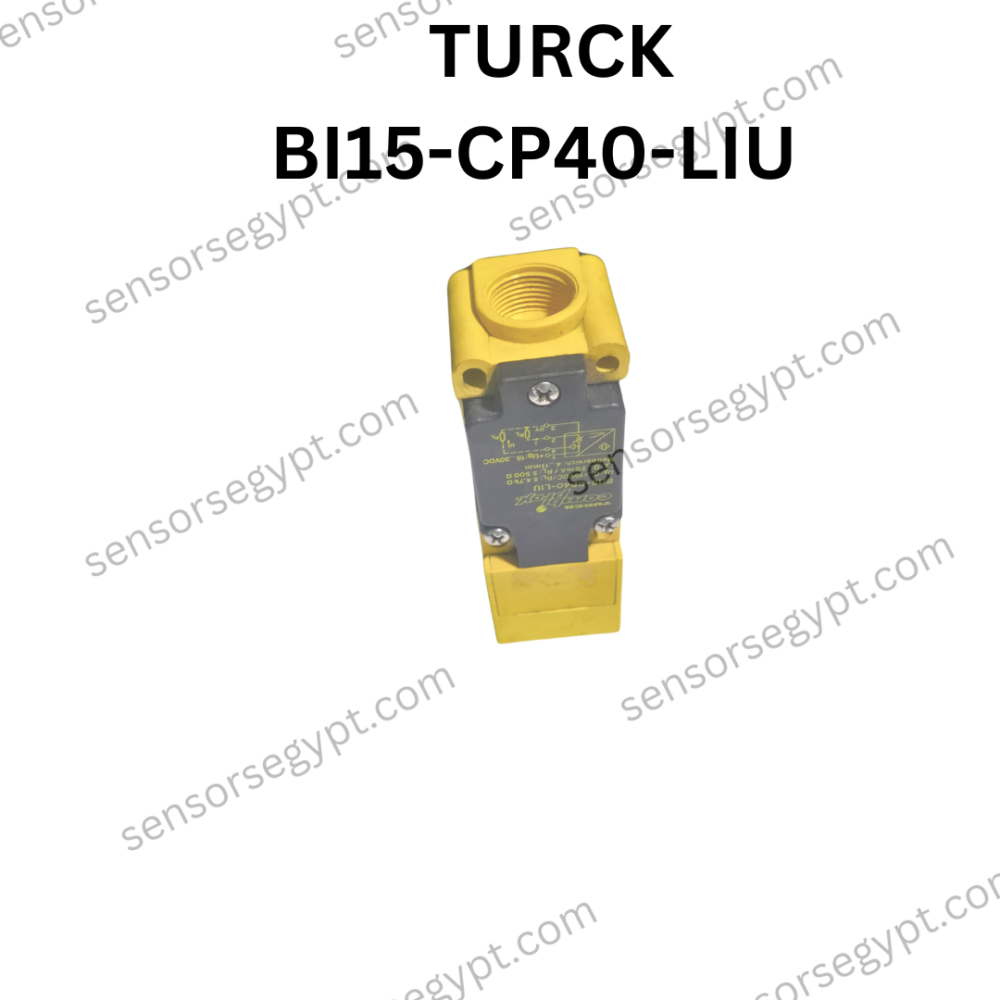

General data
Measuring range 4…11 mm
Mounting conditions Flush
Secured operating distance ≤ (0.81 × Sn) mm
Correction factors St37 = 1; Al = 0.3; stainless steel = 0.7;
Ms = 0.4
Repeatability ≤ 1 % of measuring range |A – B|
0.5 %, after warm-up 0.5 h
Reproducibility ≤ 70 µm
≤ 35 µm, after a warm-up time of 0.5 h
Linearity deviation ≤ 3 %
Temperature drift ≤ ± 0.06 %/K
Electrical data
Operating voltage UB 15…30 VDC
Ripple Uss ≤ 10 % UBmax
No-load current ≤ 8 mA
Isolation test voltage 0.5 kV
Short-circuit protection yes
Wire break/reverse polarity protection no/Complete
Output function 4-wire, Analog output
Voltage output 0…10 V
Current output 0…20 mA
Load resistance voltage output ≥ 4.7 kΩ
Load resistance current output ≤ 0.4 kΩ
Measuring sequence frequency 110 HzMechanical data
Design Rectangular, CP40
Dimensions 114 x 40 x 40 mm
Housing material Plastic, PBT-GF30-V0, Black
Active area material Plastic, PBT-GF30-V0, yellow
Electrical connection Terminal chamber
Clamping ability ≤ 2.5 mm²
Environmental conditions
Ambient temperature -25…+70 °C
Vibration resistance 55 Hz (1 mm)
Shock resistance 30 g (11 ms)
Protection class IP67
MTTF 751 years acc. to SN 29500 (Ed. 99) 40
°C

TURCK NI14U-MT18E-AP6X-H1141/S724
