Technical Datasheet: TURCK BI1,5U-EG08-AP6X

Series: uprox® (Factor 1 Inductive Sensor)

Ident-No.: 4600500

1. Product Characteristics & Application

• Sensor Type: Inductive Proximity Sensor

• Housing Design: Threaded barrel type (M8 × 1) with a high-grade stainless steel barrel (EG designator).

• Sensing Range ($S_n$): 1.5 mm

• Mounting: Flush mountable (indicated by the flush installation graphic on the label).

• Special Features: uprox® technology (Factor 1) — detects all magnetic and non-magnetic metals (steel, stainless steel, brass, aluminum, copper) at the exact same sensing distance of 1.5 mm without any reduction factor. It features high magnetic field immunity and excellent operational reliability in compact industrial environments.

2. Electrical Data

• Operating Voltage: 10…30 V DC

• Rated Current Consumption: ≤ 150 mA

• Electrical Design: DC PNP

• Output Function: Normally Open (NO)

• Protection Class: Class 2 Source compliant (UL listed, 36GN)

3. Performance & Dynamic Data

• Switching Frequency: High response frequency optimized for high-speed target detection, rapid counting loops, and precise micro-positioning.

• Short-Circuit Protection (SCP): Yes

• Overload & Reverse Polarity Protection: Yes

4. Mechanical & Environmental Data

• Dimensions: M8 × 1 mm thread / Standard stainless steel barrel length

• Housing Material: High-grade robust Stainless Steel (EG08 series)

• Ambient Operating Temperature: -25 °C…70 °C

• Ingress Protection (IP Rating): IP68

• Country of Origin: Made in Switzerland

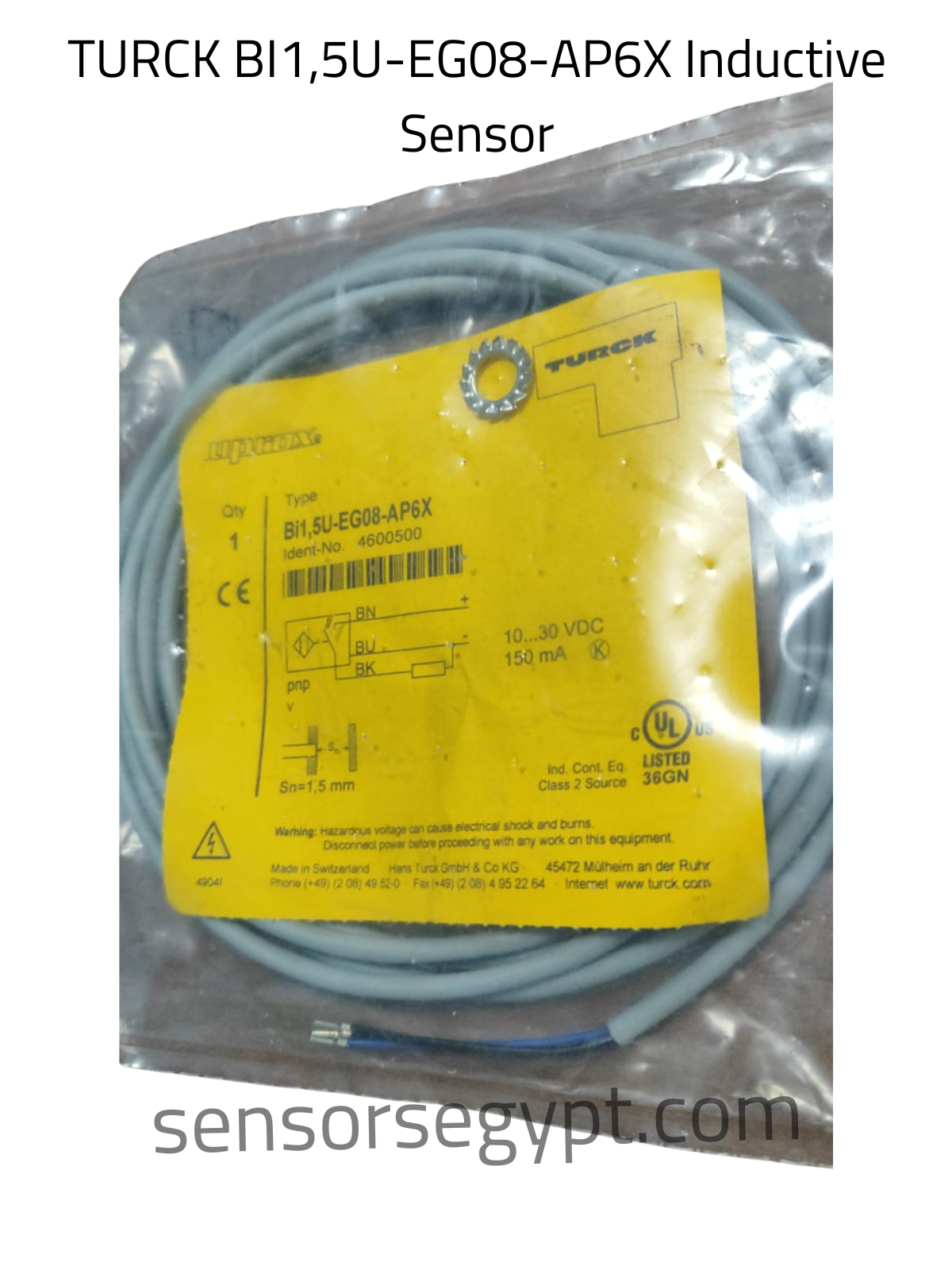

• Cable Integrity: High-flexibility 3-core industrial cable connection with pre-stripped wire ends (visible looped inside the pouch pack).

• Item Code / Batch: 4904I

5. Electrical Connection & Wiring Layout

The sensor features an integrated hard-wired 2-meter cable connection leading directly out of the rear base shell (3-wire setup).

Wiring & Core Color Assignment:

• BN (Brown): → + (10…30 V DC Power Supply)

• BU (Blue): → – (0 V Ground / Common)

• BK (Black): → Output Switching Signal (Load)

Wiring Diagram:

       [ BN / Brown ] ───────────────────────── ( + )
              │
          ┌───┴───┐
          │  PNP  │───────── [ BK / Black ] ──── [ Load ] ────┐
          │  N.O. │                                          │
          └───┬───┘                                          │
              │                                              │
       [ BU / Blue  ] ───────────────────────────────────────┴─── ( - )
DATA SHEET
