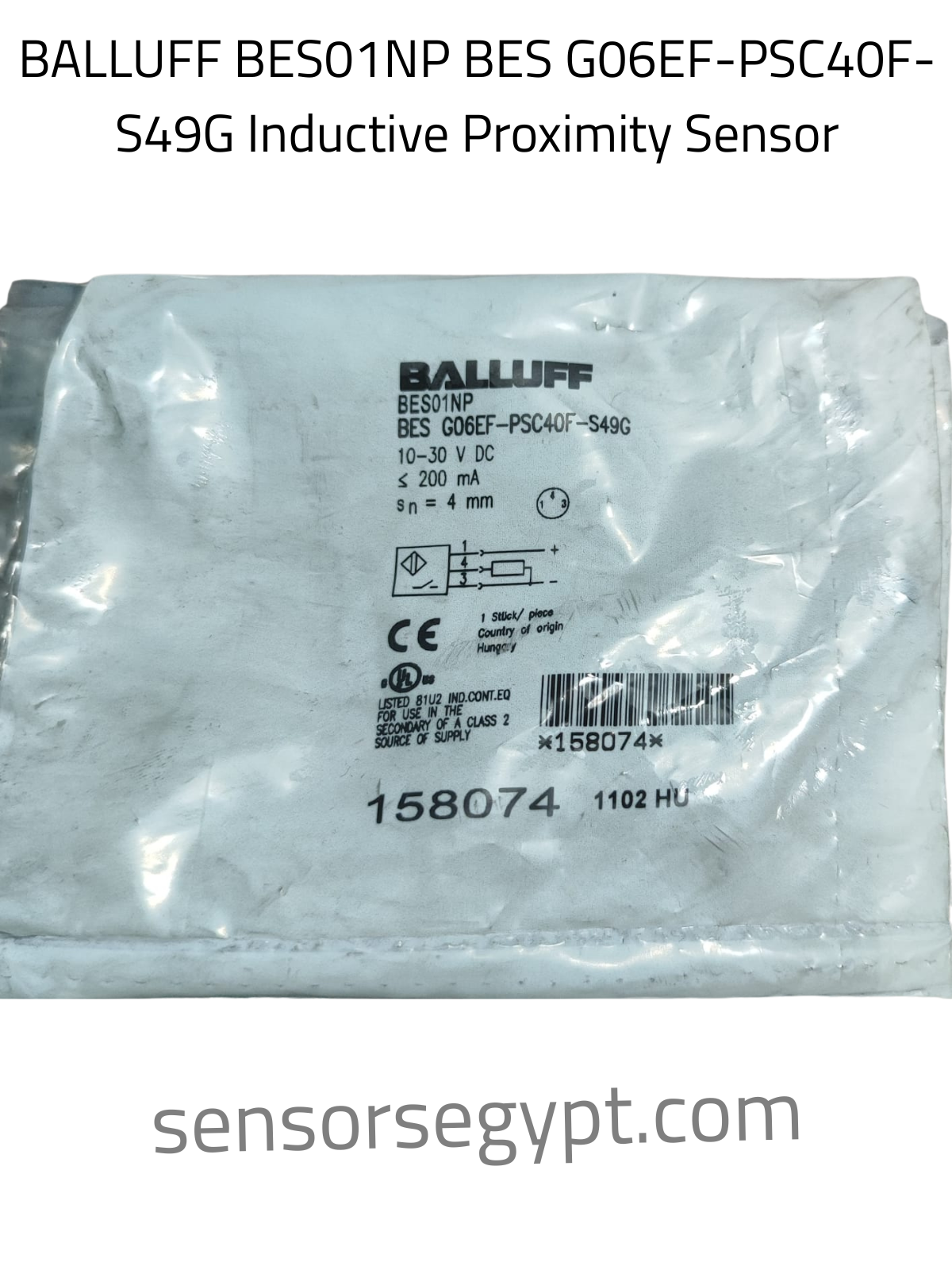

Technical Datasheet: BALLUFF BES01NP

Ordering Code: BES01NP

Part Number / Model: BES G06EF-PSC40F-S49G

1. Product Characteristics & Application

• Sensor Type: Inductive Proximity Sensor

• Housing Design: Threaded smooth cylindrical barrel type (M6 × 0.5)

• Sensing Range (Sn): 4 mm (Extended sensing range for an M6 housing)

• Mounting: Flush mountable (f)

• Special Features: Robust stainless steel housing construction designed for precise position sensing and end-of-travel limit switching in tight, space-restricted industrial automation setups.

2. Electrical Data

• Operating Voltage: 10…30 V DC (Supply Class 2 source compliant)

• Rated Current Consumption: ≤ 200 mA

• Electrical Design: DC PNP

• Output Function: Normally Open (NO)

• Approvals: CE, cULus Listed (81U2)

3. Performance & Dynamic Data

• Short-Circuit Protection (SCP): Yes

• Overload & Reverse Polarity Protection: Yes

• Switching Frequency: High dynamics optimized for high cyclic operation speeds and precision micro-positioning.

4. Mechanical & Environmental Data

• Dimensions: M6 × 0.5 mm metric thread / Compact housing length

• Housing Material: High-grade Stainless Steel

• Country of Origin: Hungary (As indicated on label: Country of origin Hungary)

• Item Code / Batch: 158074 / 1102 HU

5. Electrical Connection & Wiring Layout

The sensor features an integrated miniature M8 circular connector (3-pin configuration).

Pinout Assignment:

• Pin 1: Brown wire → + (10…30 V DC Power Supply)

• Pin 4: Black wire → Output Switching Signal (Load)

• Pin 3: Blue wire → – (0 V Ground / Common)

Wiring Diagram:

       [ Pin 1 ] ───────────────────────── ( + )
          │
      ┌───┴───┐
      │  PNP  │───────── [ Pin 4 ] ──── [ Load ] ────┐
      │  N.O. │                                      │
      └───┬───┘                                      │
          │                                          │
       [ Pin 3 ] ────────────────────────────────────┴─── ( - )
