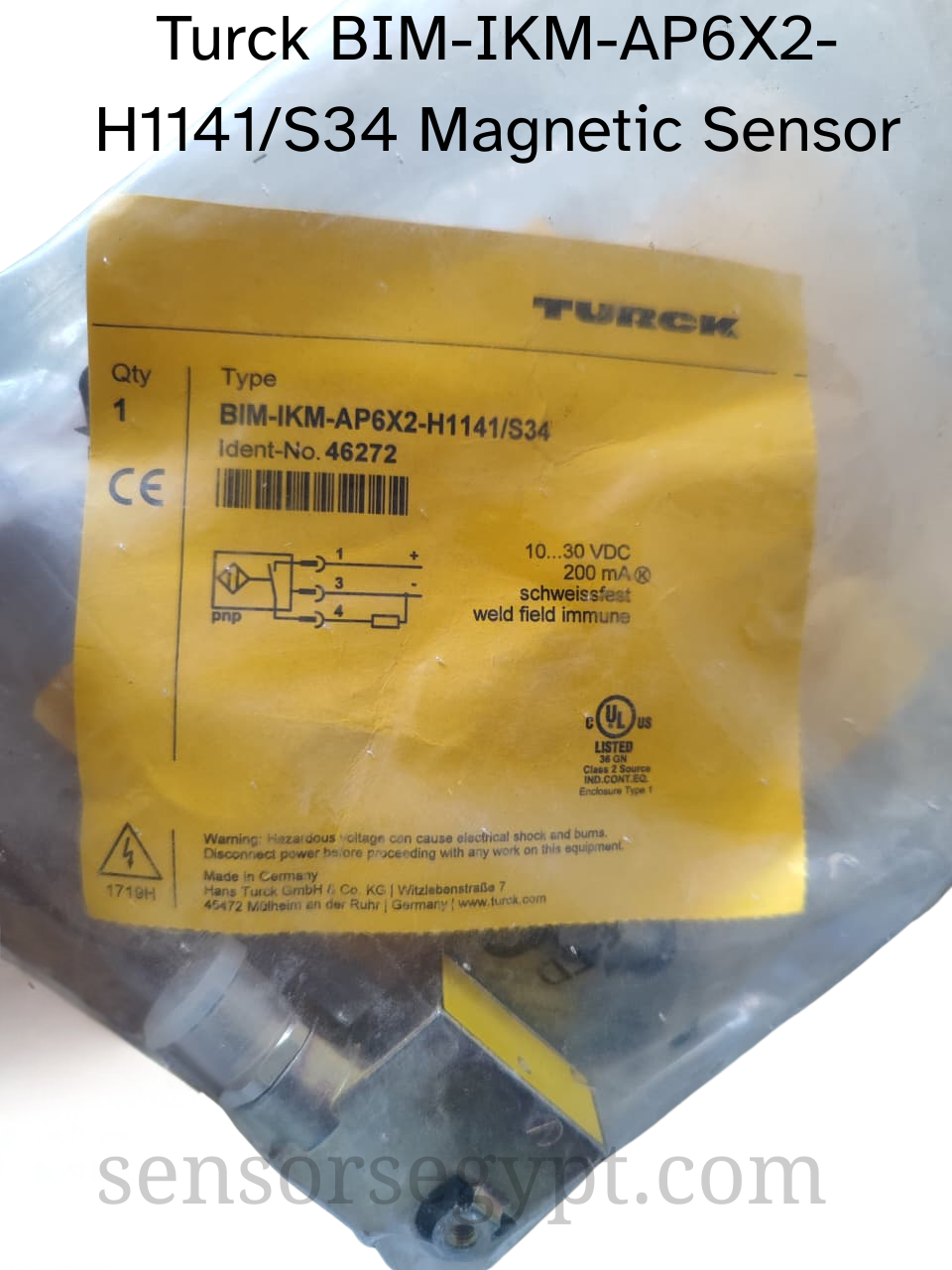

Datasheet: Turck Magnetic Field Sensor



Type: BIM-IKM-AP6X2-H1141/S34 Ident-No: 46272

---



1. General Description



This is a rectangular, magnetic-inductive sensor designed for detecting piston positions in pneumatic cylinders. Its “Permaprox” technology makes it immune to AC weld fields (50-60 Hz), preventing false switching during welding operations. The sensor features a 3-wire DC, Normally Open (NO) PNP output and connects via an M12x1 male connector.



Key Features



• Weld Field Immune: Resistant to AC magnetic fields to ensure reliable operation in welding environments.
• Robust Housing: Constructed from durable die-cast zinc (GD-Zn).
• Clear Indication: Equipped with two LEDs for power-on (Green) and switching state (Yellow) indication.
• High Protection: Rated at IP67, making it dust-tight and protected against temporary immersion in water.
• Protected Electronics: Features integrated short-circuit, overload, and reverse-polarity protection.

---



2. Technical Specifications





Electrical Data





Mechanical & Environmental Data



---



3. Wiring Diagram (M12 Connector)



The sensor uses a standard 3-pin PNP configuration.

• Pin 1: + (Brown Wire): Connect to + 10…30 VDC
• Pin 3: - (Blue Wire): Connect to Ground (GND)
• Pin 4: Output (Black Wire): PNP Switched Output
