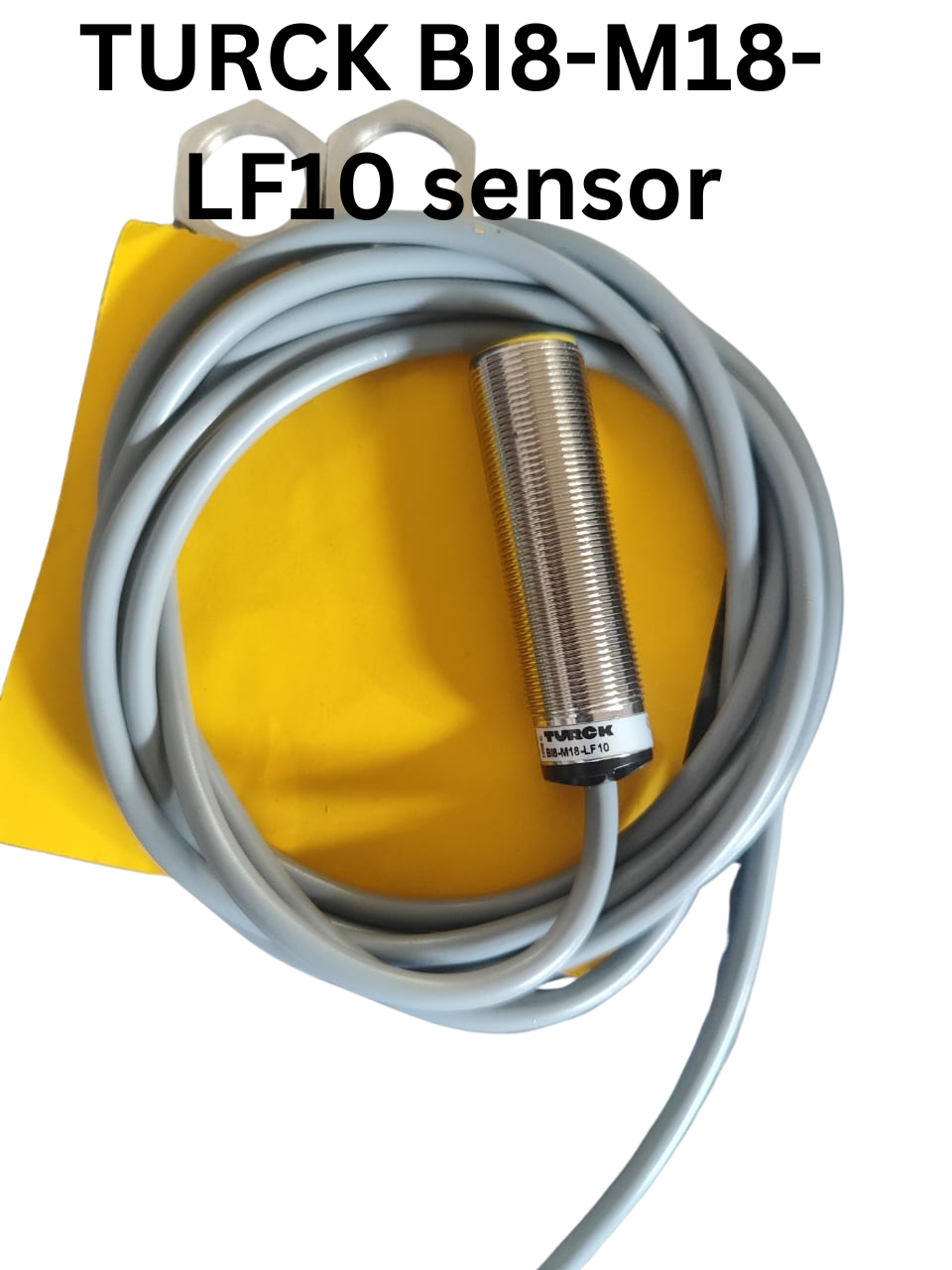

Type BI8-M18-LF10
Ident. no. 1535529
Measuring range 1…5 mm
Mounting conditions Flush
Secured operating distance ≤ (0.81 × Sn) mm
Correction factors St37 = 1; Al = 0.3; stainless steel = 0.7; Ms
= 0.4
Repeatability ≤ 1 % of measuring range |A – B|
0.5 %, after warm-up 0.5 h
Linearity deviation ≤ 5 %
Temperature drift ≤ ± 0.06 % / K
Ambient temperature -25…+70 °C
Operating voltage 15…30 VDC
Residual ripple ≤ 10 % Uss
No-load current ≤ 8 mA
Isolation test voltage ≤ 0.5 kV
Output current ≤ 30 mA
Short-circuit protection yes
Wire breakage/Reverse polarity protection no / Complete
Output function 3-wire, Analog output
Frequency output 1…10 kHz
Output level high > UB – 2,5 V; low < 2,5 V V
Measuring sequence frequency 200 Hz

TURCK B14U MT18-F6X-H1141
