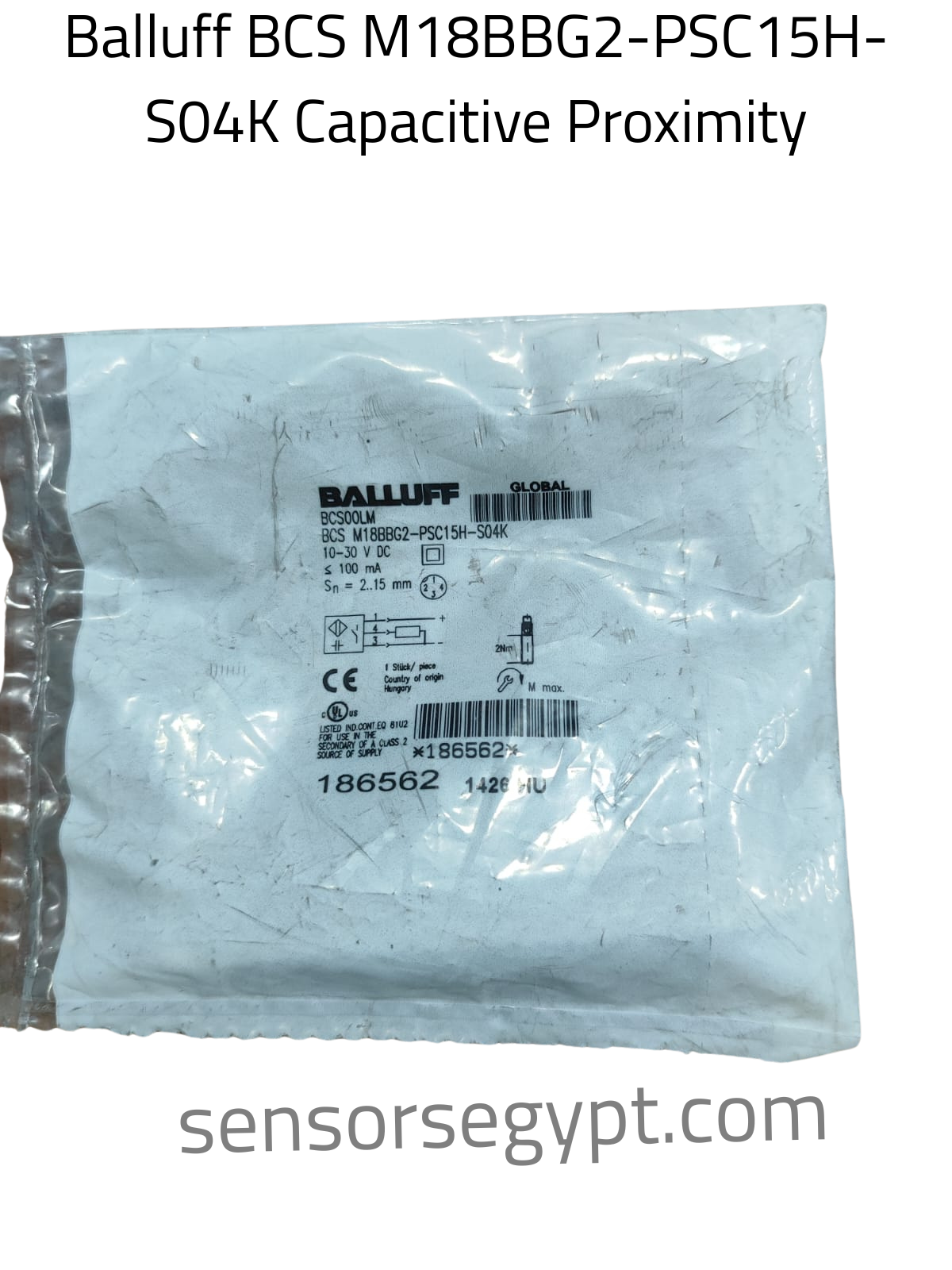

Technical Datasheet: Balluff Capacitive Proximity Sensor

General Identification

• Manufacturer: Balluff (Global Series)

• Order Code: BCS00LM

• Model / Type: BCS M18BBG2-PSC15H-S04K

• Sensor Type: Capacitive Proximity / Level Sensor

• Country of Origin: Hungary

Electrical Specifications

• Operating Voltage (U_b): 10–30 V DC

• Rated Operational Current (I_e): \le 100 mA

• Switching Output: PNP

• Output Function: Normally Open (NO)

• Switching Frequency: 100 Hz

Mechanical & Senses Specifications

• Sensing Range (S_n): 2…15 mm (Adjustable sensitivity)

• Housing Size / Thread: M18x1 Cylindrical (Dimension: $\varnothing$ 18 x 88.5 mm)

• Installation: Non-flush (Non-embedded)

• Housing Material: PBT (Polybutylene terephthalate)

• Sensing Face Material: PBT

• Enclosure Rating: IP67

• Ambient Operating Temperature: -25°C to +85°C

Connection & Wiring Configuration

• Connection Type: M12x1 Male Connector, 4-pin

Pinout / Wiring Diagram:

• Pin 1: Brown | Positive Supply (+)

• Pin 3: Blue | Negative Supply (-)

• Pin 4: Black | Switching Output (PNP / NO load)

• Pin 2: Not Used

Standards & Approvals

• Certifications: CE, cULus listed, UKCA, WEEE
