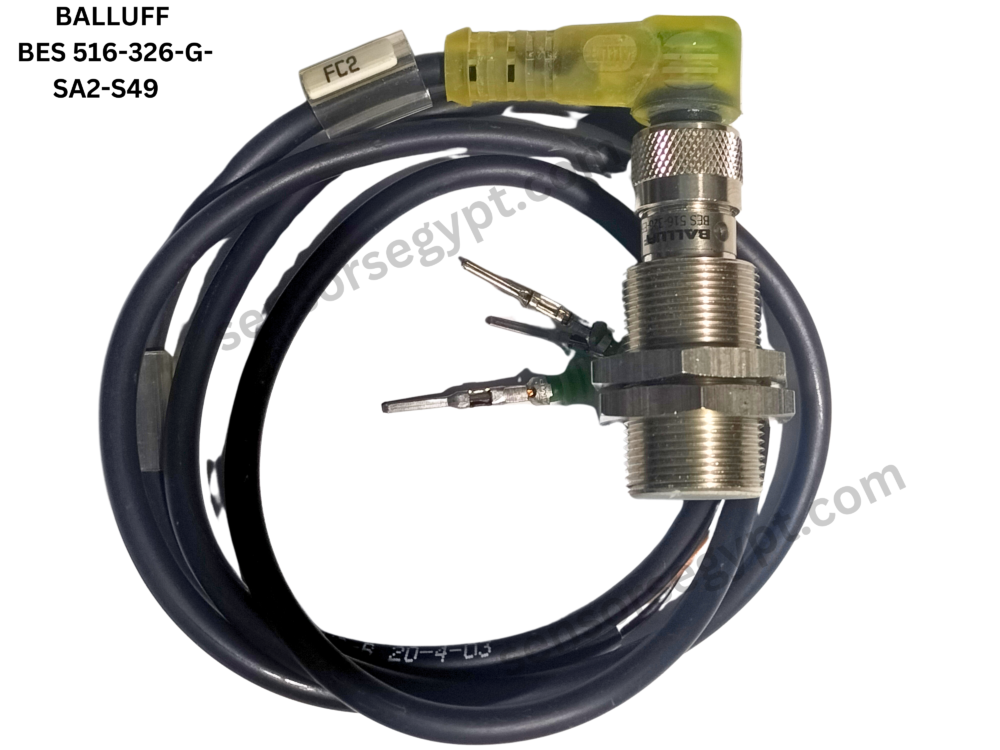

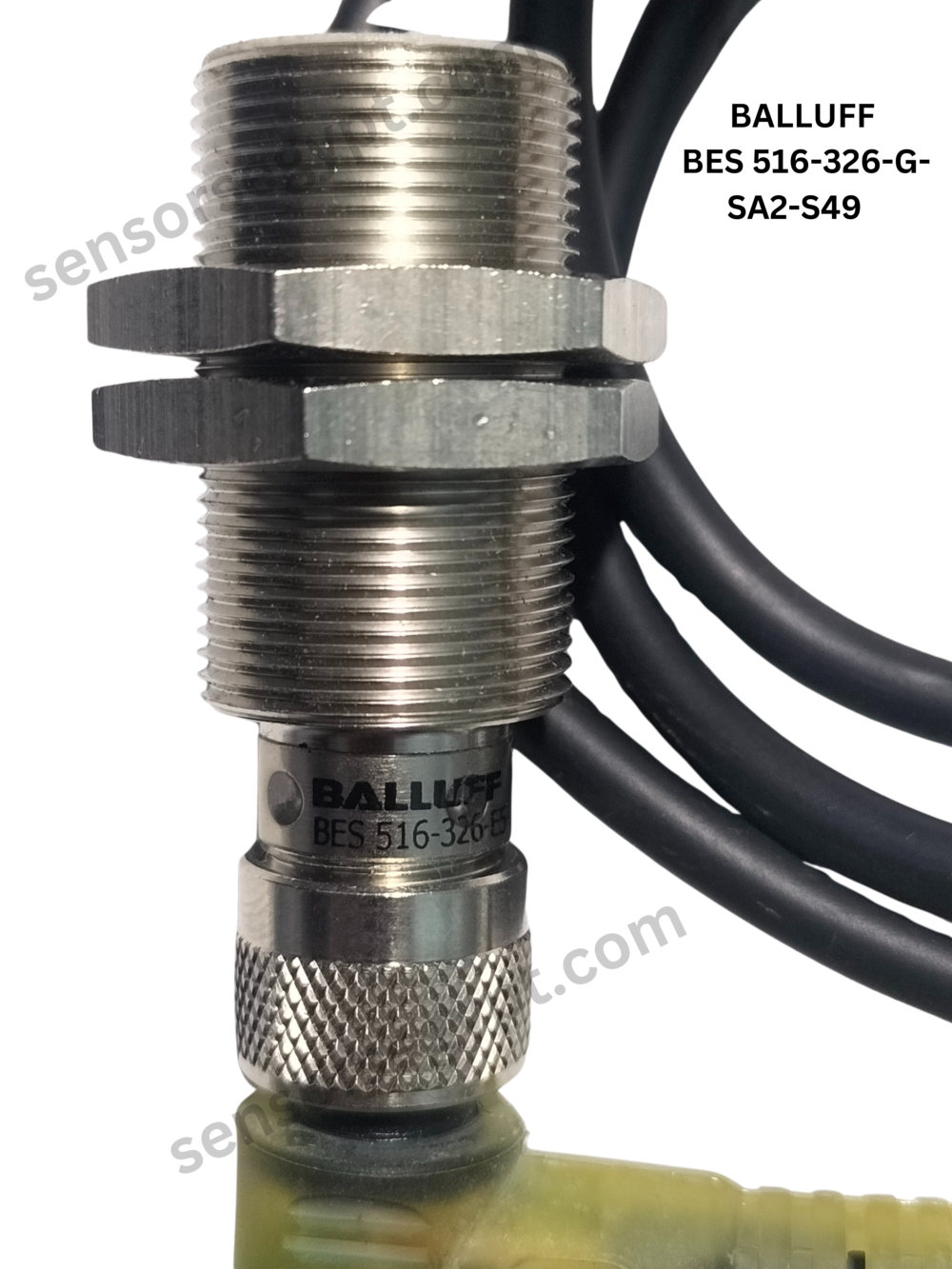

Basic features
Approval/Conformity CE
cULus
EAC
WEEE
Basic standard IEC 60947-5-2
Display/Operation
Function indicator yes
Power indicator no
Electrical connection
Connection M12x1-Male, 4-pin, A-coded
Polarity reversal protected yes
Protection against device mix-ups yes
Short-circuit protection yes
Electrical data
Load capacitance max. at Ue 1 µF
Min. operating current Im 0 mA
No-load current Io max., damped 25 mA
No-load current Io max., undamped 12 mA
Operating voltage Ub 10…30 VDC
Output resistance Ra 2.0 kOhm + D + LED
Rated insulation voltage Ui 75 V DC
Rated operating current Ie 130 mA
Rated operating voltage Ue DC 24 V
Rated short circuit current 100 A
Ready delay tv max. 10 ms
Residual current Ir max. 80 µA
Ripple max. (% of Ue) 15 %
Switching frequency 200 Hz
Utilization category DC -13
Voltage drop static max. 3.8 V
Environmental conditions
Ambient temperature -25…70 °C
Contamination scale 3
EN 60068-2-27, Shock Half-sinus, 30 g , 11 ms
EN 60068-2-6, Vibration 55 Hz, amplitude 1 mm, 3×30 min
IP rating IP67
