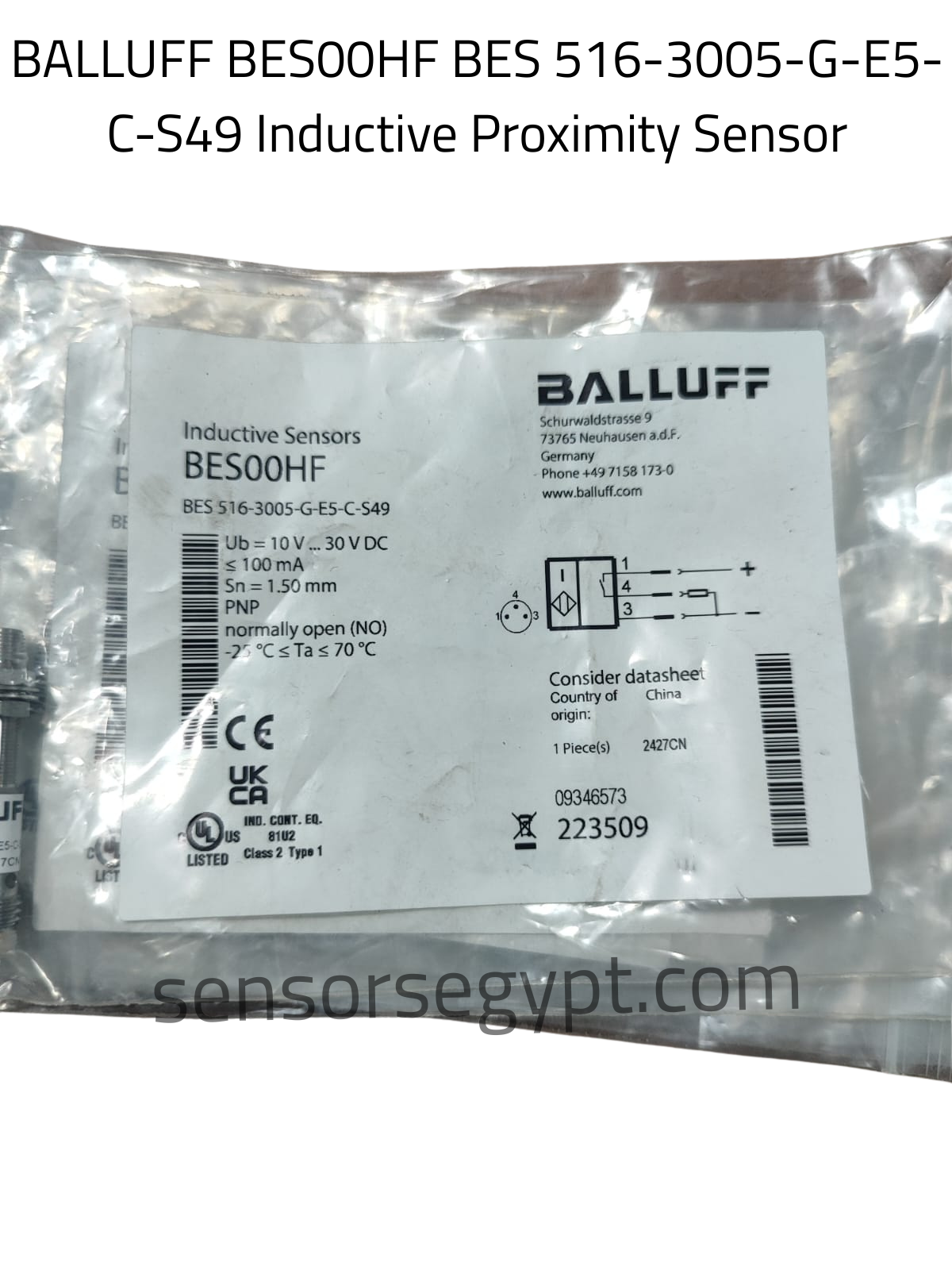

Technical Datasheet: BALLUFF BES00HF

Ordering Code: BES00HF

Part Number / Model: BES 516-3005-G-E5-C-S49

Product Category: Inductive Proximity Sensor

1. Product Characteristics & Application

• Sensor Type: Inductive Proximity Sensor

• Housing Design: Smooth or specialty housing variant indicated by the ultra-compact diameter body line (G-E5 designator layout).

• Sensing Range (Sn): 1.50 mm (High-precision standard micro-sensing distance).

• Mounting: Flush mountable (indicated by embeddable installation parameters).

• Special Features: A highly specialized miniature industrial sensor designed for micro-automation applications. Ideal for restricted mounting zones such as small pneumatic actuators, precise robotic finger linkages, high-density indexers, and fine material alignment tracking.

2. Electrical Data

• Operating Voltage (Ub): 10…30 V DC

• Rated Current Consumption: ≤ 100 mA (Ultra-low current footprint setup)

• Electrical Design: DC PNP

• Output Function: Normally Open (NO)

• Approvals: CE, UKCA, cULus Listed (IND. CONT. EQ. 81U2 / Class 2 Type 1)

3. Performance & Dynamic Data

• Ambient Operating Temperature (Ta): -25 °C ≤ Ta ≤ 70 °C

• Short-Circuit Protection (SCP): Yes

• Overload & Reverse Polarity Protection: Yes

• Switching Frequency: Excellent high-cyclic response velocity engineered for fast precision timing steps and immediate target feedback loops.

4. Mechanical & Environmental Data

• Housing Material: Premium robust metal / stainless steel housing composition

• Country of Origin: China (As indicated on label: Country of origin: China)

• Item Code / Batch: 223509 / 2427CN / 09346573

5. Electrical Connection & Wiring Layout

The sensor features an integrated standard compact 3-pin circular male connector interface (S49 interface designator).

Pinout Assignment:

• Pin 1: Brown wire → + (10…30 V DC Power Supply)

• Pin 4: Black wire → Output Switching Signal (Load)

• Pin 3: Blue wire → – (0 V Ground / Common)

Wiring Diagram:

       [ Pin 1 ] ───────────────────────── ( + )
          │
      ┌───┴───┐
      │  PNP  │───────── [ Pin 4 ] ──── [ Load ] ────┐
      │  N.O. │                                      │
      └───┬───┘                                      │
          │                                          │
       [ Pin 3 ] ────────────────────────────────────┴─── ( - )
