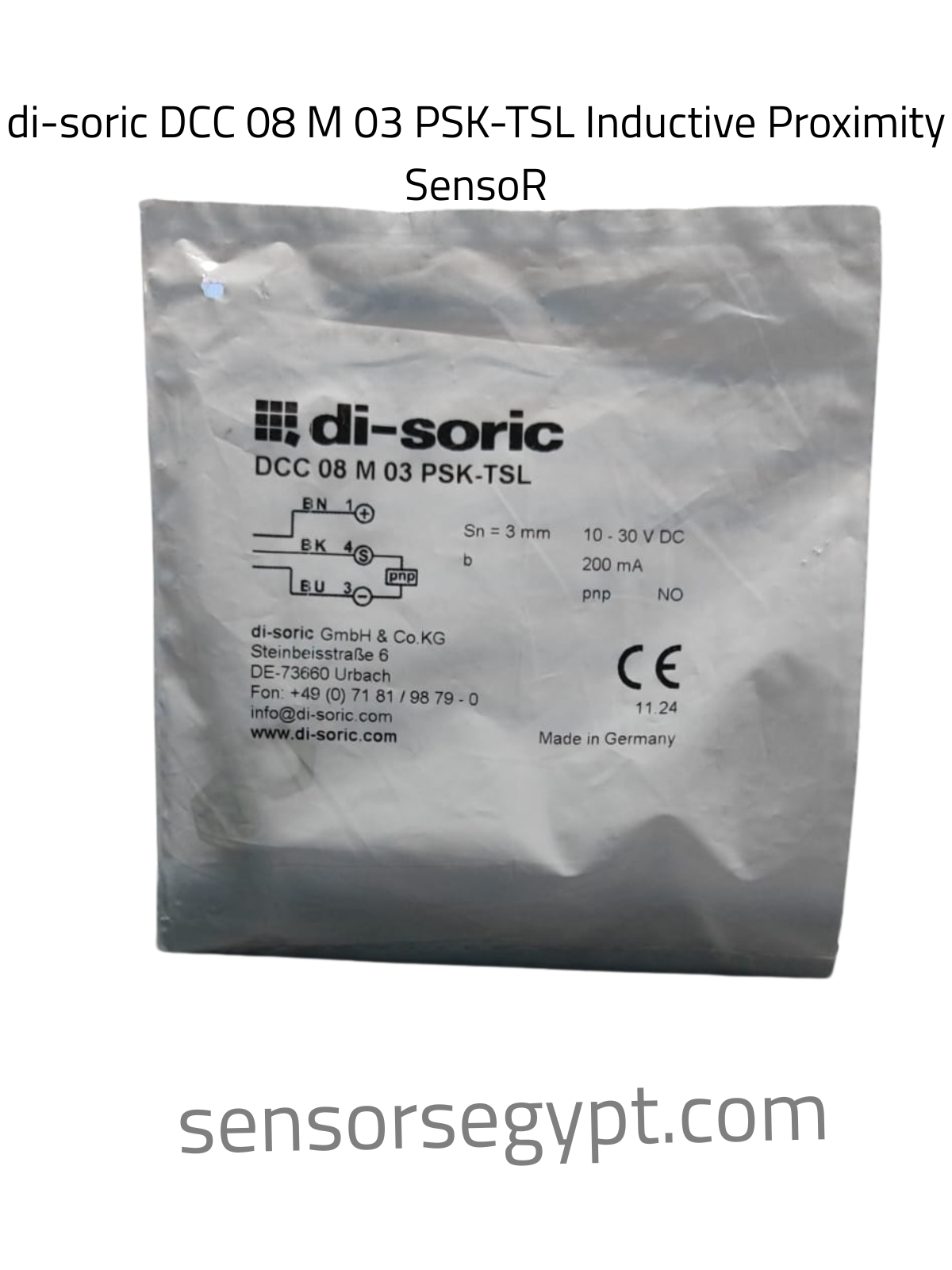

Technical Datasheet: di-soric DCC 08 M 03 PSK-TSL

Part Number / Type: DCC 08 M 03 PSK-TSL

Product Category: Inductive Proximity Sensor (Induktiver Näherungsschalter)

1. Product Characteristics & Application

• Sensor Type: Inductive Proximity Sensor

• Housing Design: Threaded mini cylindrical barrel type (M8 designator indicated by the 08 in the part number).

• Sensing Range (Sn): 3 mm (Extended high-performance range for its compact housing diameter).

• Mounting: Flush mountable (indicated by the b designator/marking layout for embeddable flush installation).

• Special Features: A premium miniature industrial sensor engineered for precise contactless metal object detection. Its flush-mountable profile allows for safe, embeddable installations directly into metal machine plates or housings, protecting the sensor head face from mechanical damage. Perfect for tight robotic grippers, precision pneumatic slide components, micro-positioning steps, and high-density manufacturing machinery.

2. Electrical Data

• Operating Voltage: 10…30 V DC

• Rated Operational Current: ≤ 200 mA max.

• Electrical Design: DC PNP

• Output Function: Normally Open (NO) (indicated on label: pnp NO).

• Approvals: CE Compliant

3. Performance & Protection Data

• Short-Circuit Protection (SCP): Yes

• Overload & Reverse Polarity Protection: Yes

• Switching Frequency: High responsive cyclic switching velocity optimized for rapid automation tracking, fast micro-indexing, and immediate process feedback loops.

4. Mechanical & Environmental Data

• Dimensions: M8 × 1 mm standard industrial metric threads.

• Housing Material: High-grade robust chrome-plated metal or stainless steel alloy casing with superior mechanical wear resistance.

• Ambient Operating Temperature: Optimized for standard automated industrial conditions.

• Country of Origin: Made in Germany

• Batch / Date Code: 11.24

• Manufacturer Contacts: di-soric GmbH & Co. KG | Steinbeisstraße 6, DE-73660 Urbach | info@di-soric.com

5. Electrical Connection & Wiring Layout

The sensor utilizes a 3-pin operational output interface configuration via an integrated compact circular quick-disconnect male plug terminal socket (-TSL designator).

Pinout & Wire Color Assignments:

• Pin 1 (BN / Brown): Brown wire reference → + (10…30 V DC Power Supply Input)

• Pin 4 (BK / Black): Black wire reference → S (Active Normally Open Output Switching Signal to Load)

• Pin 3 (BU / Blue): Blue wire reference → – (0 V Ground / Common line reference)

Wiring Diagram:

       [ Pin 1 / BN ] ───────────────────────── ( + )
              │
          ┌───┴───┐
          │  PNP  │───────── [ Pin 4 / BK ] ──── [ S - Load ] ────┐
          │  N.O. │                                               │
          └───┬───┘                                               │
              │                                                   │
       [ Pin 3 / BU ] ────────────────────────────────────────────┴─── ( - )
