Technical Datasheet: di-soric D7C 12 V 04 PSK-IBSL

Part Number / Type: D7C 12 V 04 PSK-IBSL

Product Category: Metal Sensing Proximity Switch (Induktiver Näherungsschalter)

1. Product Characteristics & Application

• Sensor Type: Inductive Proximity Sensor

• Housing Design: Threaded cylindrical barrel type (M12 designator indicated by the 12 in the part number).

• Sensing Range (sn): 4 mm (Standard reliable sensing distance for an M12 housing size).

• Mounting: Non-flush mountable (indicated by the label text: nicht bündig einbaubar / non noyable dans le métal / for non-flush mounting).

• Special Features: Part of di-soric’s classic rugged industrial line, designed for non-contact presence detection of metallic components. The non-flush configuration ensures reliable target recognition with a high level of environmental immunity against fine metal particles or chips, making it highly suitable for conveyor positioning tracks, machinery limit restrictions, and general manufacturing line automation.

2. Electrical Data

• Operating Voltage (UB): 10…30 V DC

• Rated Operational Current (IA): ≤ 200 mA max.

• Electrical Design: DC PNP

• Output Function: Normally Open (NO) (indicated by: PNP Schliesser / PNP à fermeture / PNP normally open).

• Approvals: CE, ISO 9001 certified manufacturer quality management.

3. Performance & Indicators

• Status Indicator: Integrated diagnostic LED feedback circuit (LED siehe Rückseite / LED voir verso / LED see over).

• Short-Circuit & Reverse Polarity Protection: Yes

• Switching Frequency: Fast dynamic response optimized for continuous automated positioning loops, precise target counting, and mechanical synchronization cycles.

4. Mechanical & Environmental Data

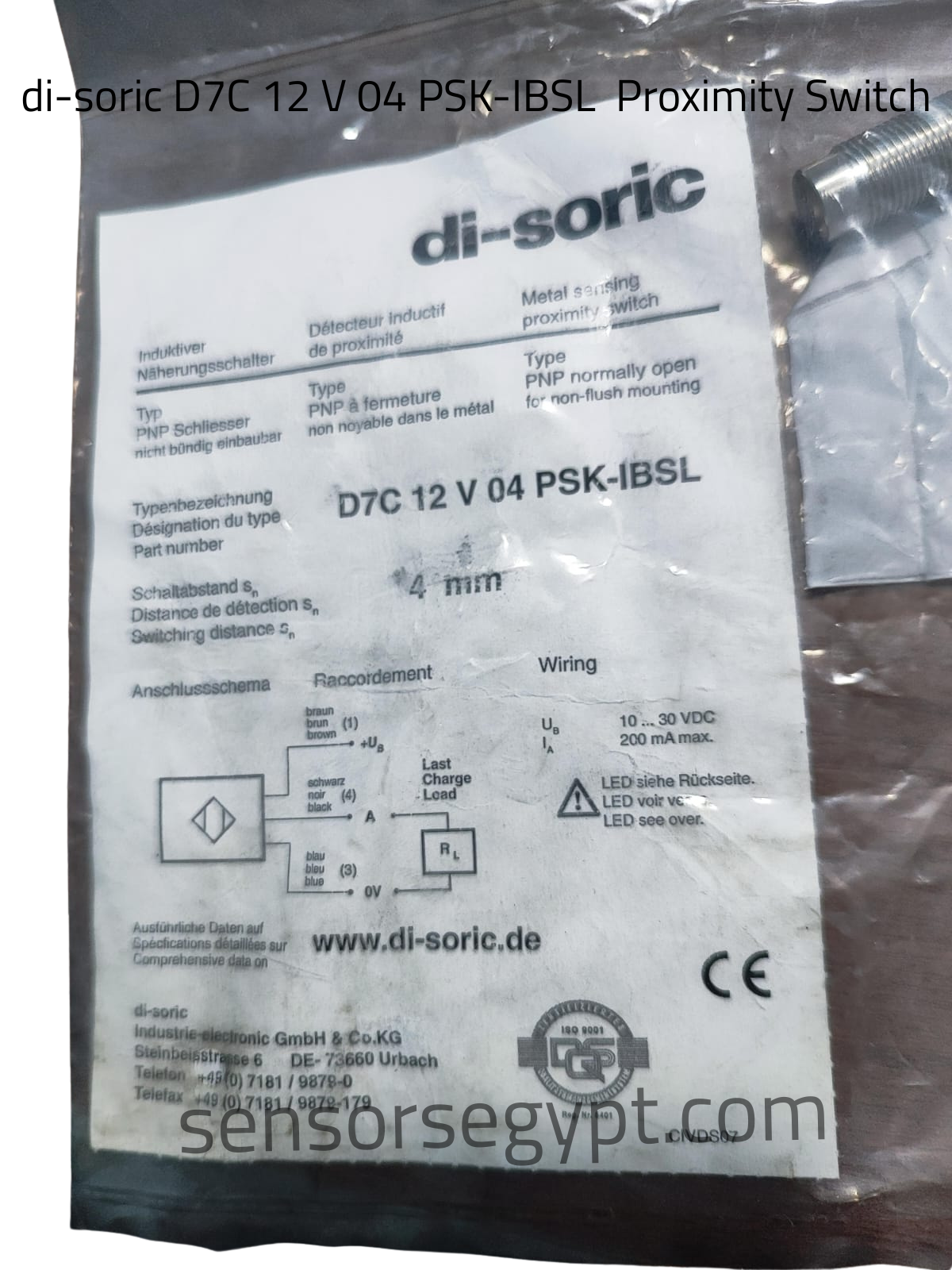

• Dimensions: M12 standard industrial metric threads (The top right portion of the image displays the metallic threaded barrel tip with an unshielded non-flush cap profile).

• Housing Material: High-grade robust metal casing designed for superior chemical and mechanical wear resistance.

• Ambient Operating Temperature: Optimized for standard automated industrial conditions.

• Manufacturer Location: di-soric Industrie-electronic GmbH & Co. KG | Steinbeisstrasse 6, DE-73660 Urbach, Germany.

• Code References: CIVDS07 / Reg. Nr. 5401

5. Electrical Connection & Wiring Layout

The sensor utilizes a standard 3-pin circular quick-disconnect connector terminal mapping out the active electrical channels.

Pinout & Wire Color Assignments:

• Pin 1 (braun / brun / brown): Brown wire reference → +UB (10…30 V DC Power Supply Input)

• Pin 4 (schwarz / noir / black): Black wire reference → A (Active Normally Open Output Switching Signal to Load)

• Pin 3 (blau / bleu / blue): Blue wire reference → 0V (Ground / Common line reference)

Wiring Diagram:
