Product description

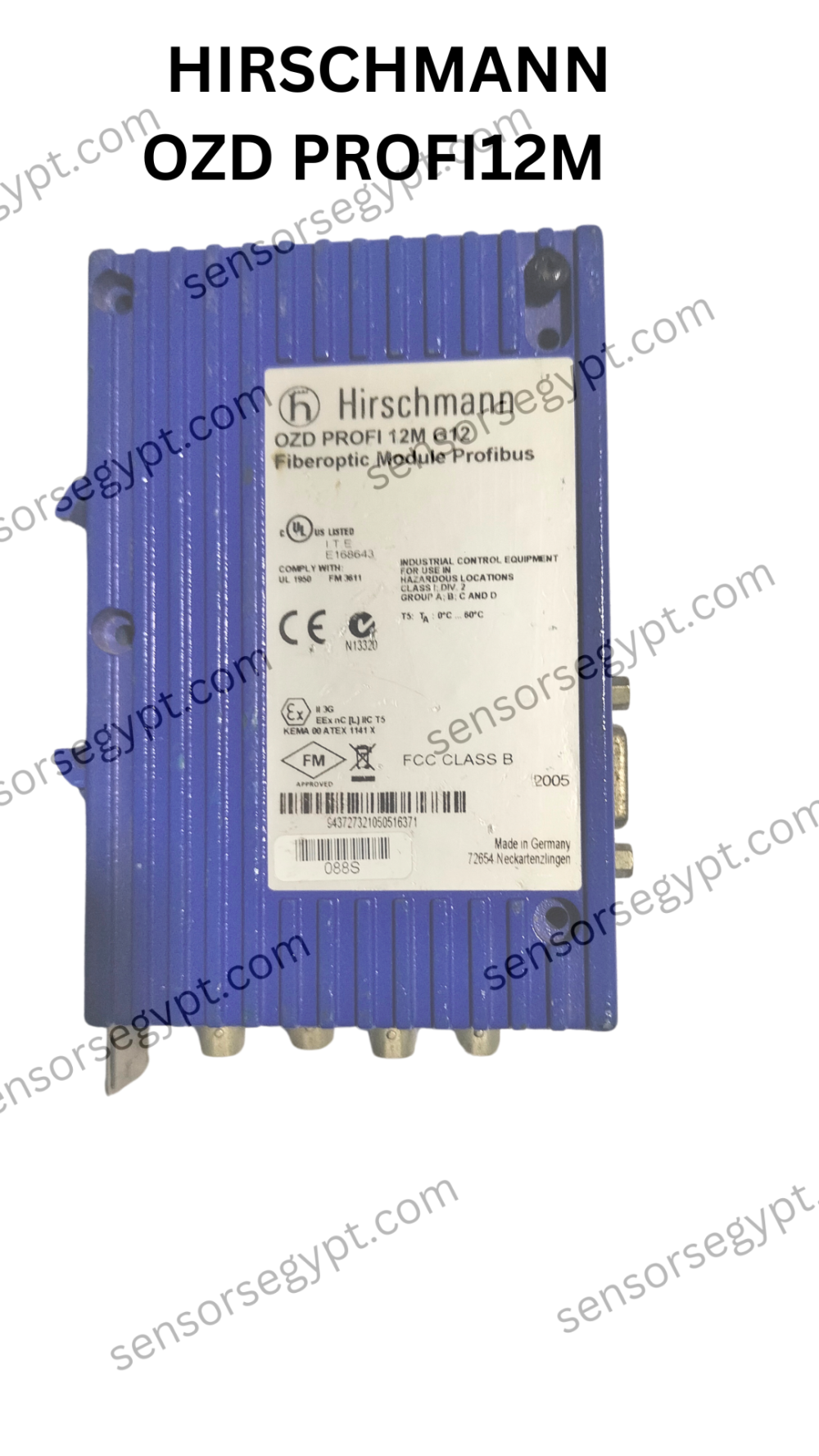

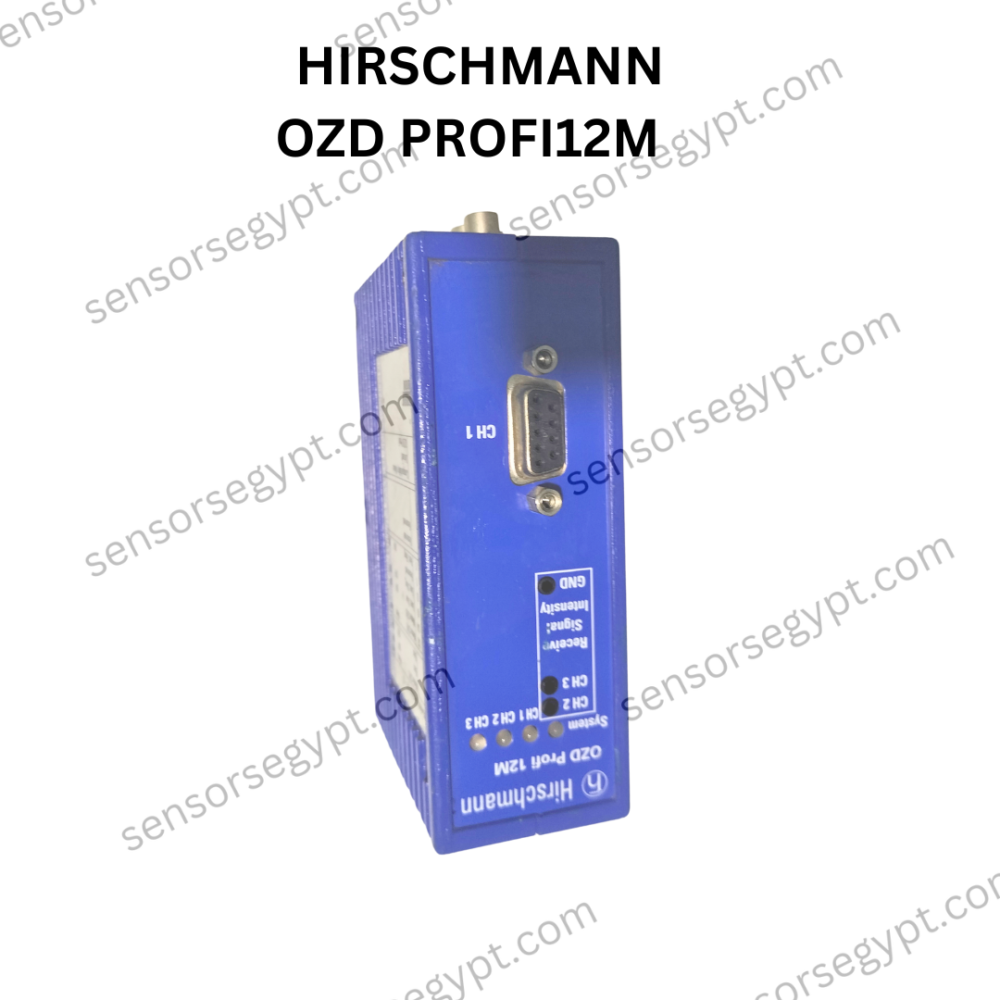

| Type | OZD Profi 12M G12 |
|---|---|
| Name | OZD Profi 12M G12 |
| Port type and quantity | 2 x optical: 4 sockets BFOC 2.5 (STR); 1 x electrical: Sub-D 9-pin, female, pin assignment according to EN 50170 part 1 |
| Signal Type | PROFIBUS (DP-V0, DP-V1, DP-V2 und FMS) |
More Interfaces
| Measuring outputs “Optical input power” | 8-pin terminal block, screw mounting |
|---|---|
| Power Supply | 8-pin terminal block, screw mounting |
| Signaling contact | 8-pin terminal block, screw mounting |
Network size – length of cable
| Single mode fiber (SM) 9/125 µm | – |
|---|---|
| Multimode fiber (MM) 50/125 µm | 3000 m, 13 dB link budget at 860 nm; A = 3 dB/km, 3 dB reserve |
| Multimode fiber (MM) 62.5/125 µm | 3000 m, 15 dB link budget at 860 nm; A = 3.5 dB/km, 3 dB reserve |
| Multimode fiber HCS (MM) 200/230 µm | 1000 m, 18 dB link budget at 860 nm; A = 8 dB/km, 3 dB reserve |
| Multimode fiber POF (MM) 980/1000 µm | – |
Power requirements
| Current consumption | max. 190 mA |
|---|---|
| Input voltage range | -7 V … +12 V |
| Operating Voltage | 18 … 32 VDC, typ. 24 VDC |
| Power consumption | 4.5 W |
| Redundancy functions | HIPER-Ring (ring structure), redundant 24 V infeed |
Power Output
| Output voltage/output current (pin6) | 5 VDC +5%, -10%, short circuit-proof/10 mA |
|---|
Ambient conditions
| Operating temperature | 0-+60 °C |
|---|---|
| Storage/transport temperature | -40-+70 °C |
| Relative humidity (non-condensing) | 10-95 % |
| Dimensions (WxHxD) | 39.5 x 137.5 x 84 mm |
| Weight | 560 g |
| Housing Material | die-cast zink |
| Mounting | DIN rail or mounting plate |
| Protection class | IP40 |
Approvals
| Basis Standard | EU Conformity, FCC Conformity, AUS Conformity Australia |
|---|---|
| Safety of industrial control equipment | cUL61010-2-201 |
| Hazardous locations | ISA 12.12.01 Class 1 Div. 2, ATEX Zone 2 |
Reliability
| Guarantee | 60 months (please refer to the terms of guarantee for detailed information) |
|---|
Scope of delivery and accessories
