System components

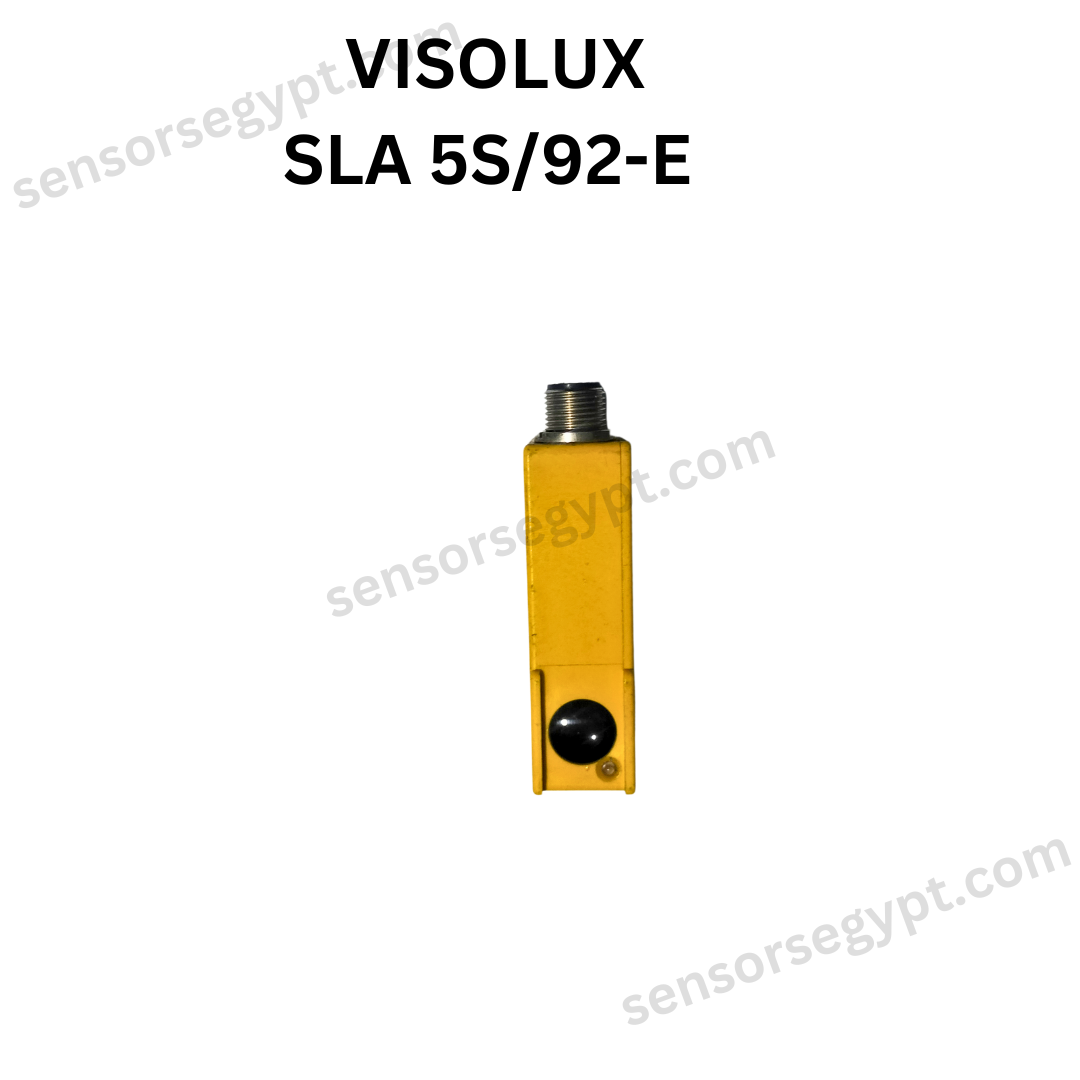

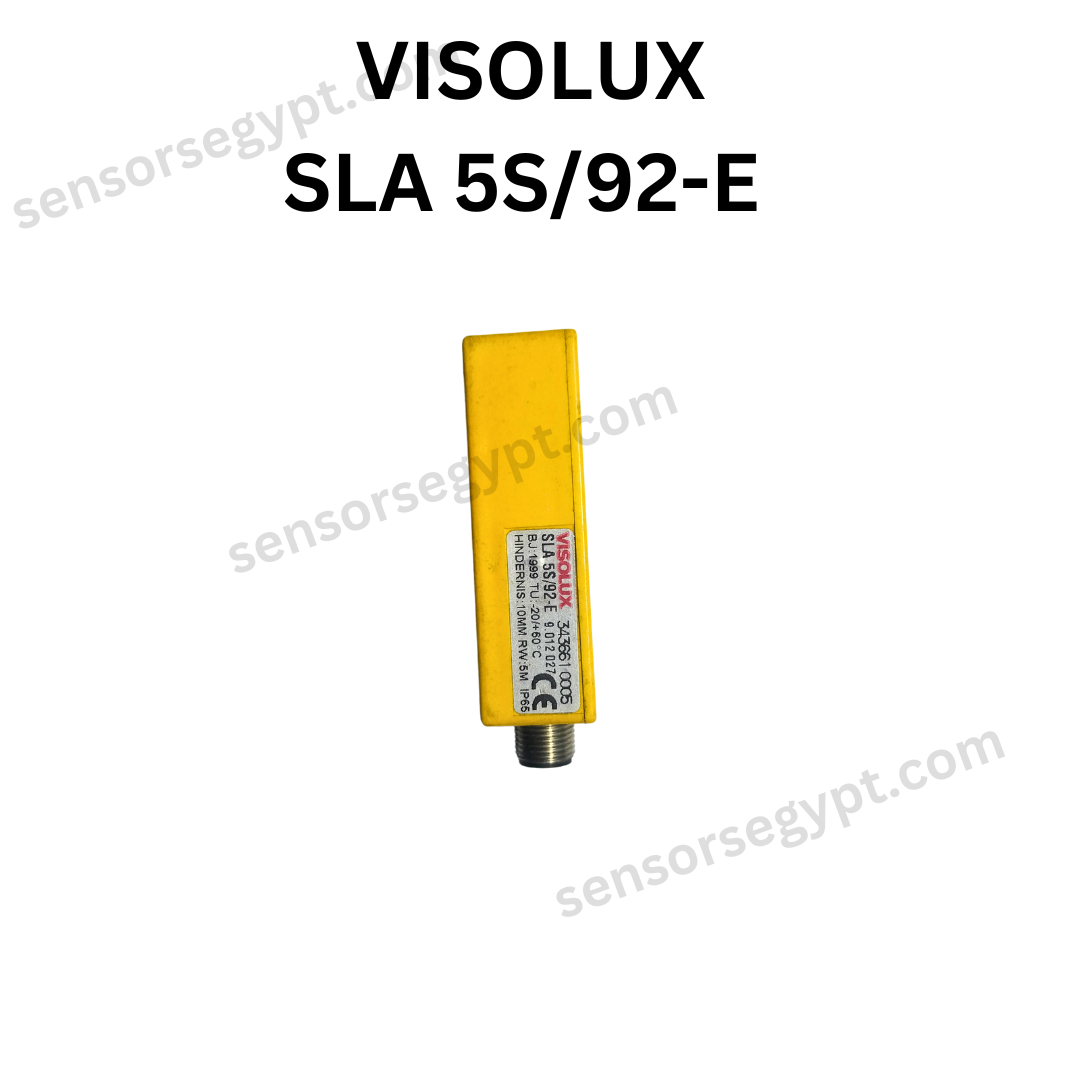

Emitter SLA5S-T/92
Receiver SLA5S-R/92
General specifications
Effective detection range 0 … 5 m
Number of protective field beams 1
Light source LED
Light type modulated visible red light
Tests IEC/EN 61496
Safety type according to IEC/EN 61496 4Marking CE
Target size static: 10 mm dynamic: 30 mm (at v = 1.6 m/s of the obstacle)
Angle of divergence < 5 °
Functional safety related parameters
Safety Integrity Level (SIL) SIL 3
Performance level (PL) PL e
Category Cat. 4
Mission Time (TM) 20 a
PFHd 4.4 E-10
Type 4
Indicators/operating means
Function indicator LED yellow/green in receiver:
off: Interruption
yellow: transmission
green: reception with sufficient stability control
Pre-fault indicator LED functional display yellow
Electrical specifications
Operating voltage UB Power supply via control unit
Conformity
Functional safety ISO 13849-1
Product standard EN 61496-1 ; IEC 61496-2
Approvals and certificates
CE conformity CE
CCC approval CCC approval / marking not required for products rated ≤36 V
Approvals TÜV

Ambient conditions
Ambient temperature -20 … 60 °C (-4 … 140 °F)
Storage temperature -20 … 70 °C (-4 … 158 °F)
Relative humidity max. 95 %, not condensing
Mechanical specifications
Degree of protection IP65
Connection M12 connector, 4-pin
Material
Housing Plastic, PC, RAL 1021 (yellow)
Optical face plastic lens
Mass per 95 g

VISOLUX LTE 1000-1419/7/44 FI
