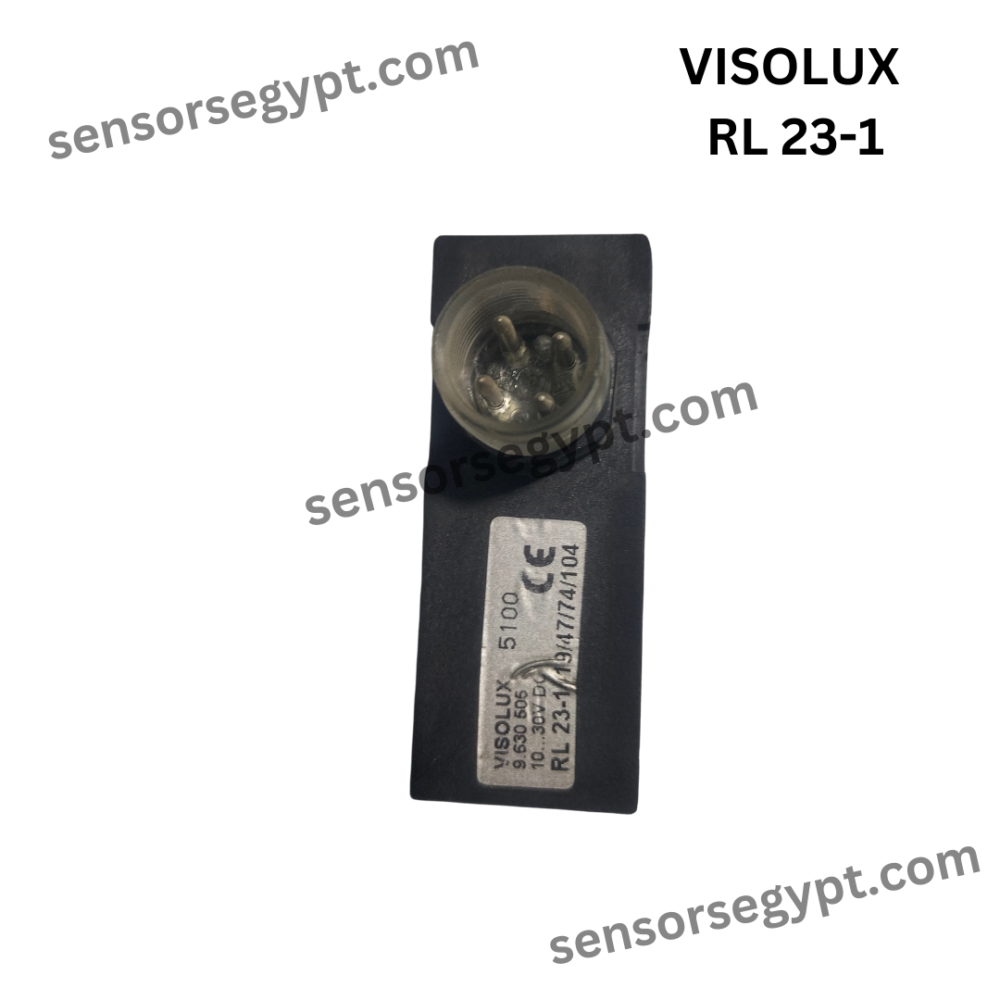

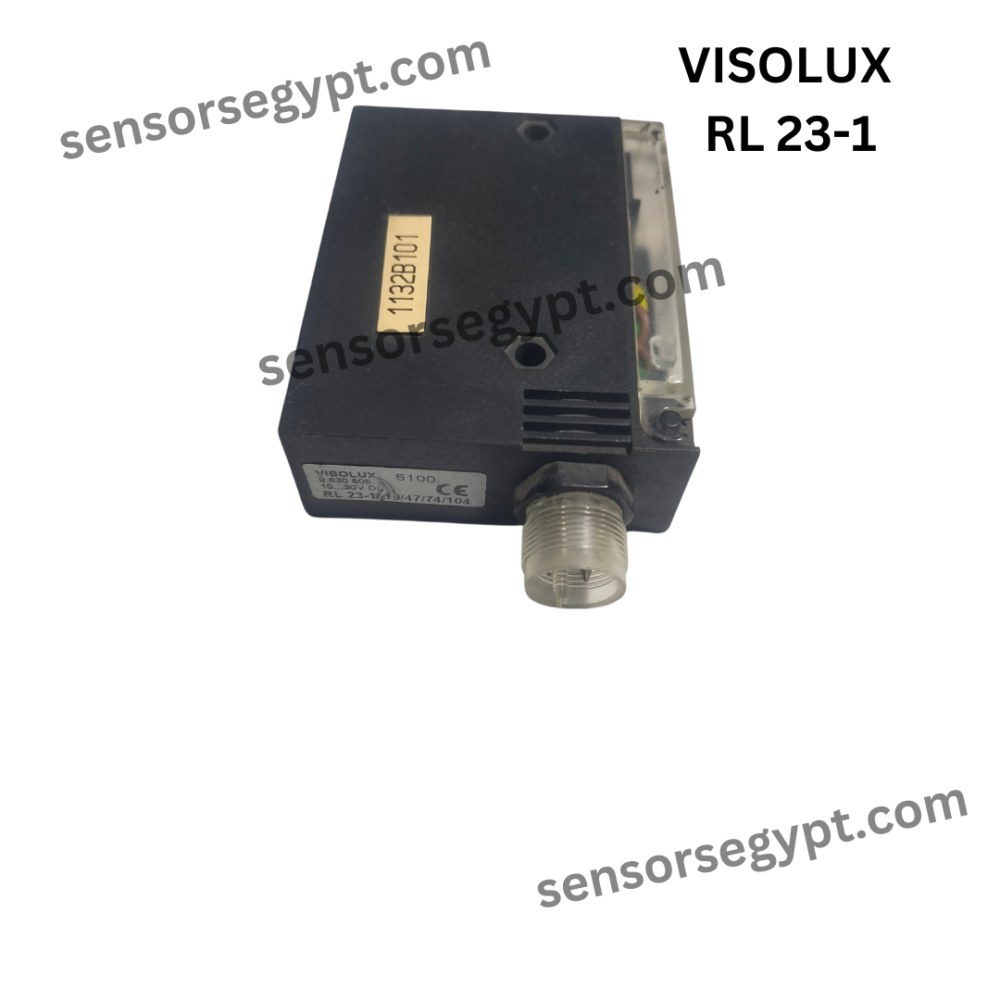

VISOLUX RL 23-1 photoelectric sensor

General specifications
Detection range 50 … 2000 mm
Detection range min. 50 … 150 mm
Detection range max. 50 … 3000 mm
Light source IRED
Light type modulated infrared light
Black-white difference (6 %/90 %) < 20 %
Diameter of the light spot 50 mm at 2000 mm sensor range
Opening angle 1.5 °
Ambient light limit 5000 Lux
Functional safety related parameters
MTTFd 540 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 60 %
Indicators/operating means
Function indicator LED yellow, lights up with receiver lit
Control elements Programming switch for light/dark switching
Control elements Sensing range adjuster
Control elements Time adjuster
Electrical specifications
Operating voltage UB 10 … 30 V DC
Ripple 10 %
No-load supply current I0 100 mA

Output
Switching type light/dark on
Signal output 2 PNP, complementary, short-circuit protected, reverse polarity protected
Switching voltage 30 V DC
Switching current max. 200 mA
Switching frequency f 70 Hz
Response time 5 ms
Timer function ON delay (GAN), OFF delay (GAB), one shot (IAB), programmable,
adjustment range 0.1 …10 s

Visolux Disposable-LS L6LV5 Ga-Ex PTB No. III B/E
