eries 92
Operating principle Reflection principle
Special version Warning output
Operating range 0.2 … 8.5 m
Operating range Guaranteed operating range
Operating range limit 0.2 … 12.5 m
Operating range limit Typical operating range
Light source LED, Red
Wavelength 660 nm
LED group 1
Type of light spot geometry Round
Supply voltage UB 10 … 30 V, DC
Number of digital switching outputs 2 Piece(s)
Switching element Transistor, PNP
Switching principle Light/dark switchable
Switching element Transistor, PNP
Switching principle UB switching
Function Warning output
Switching frequency 500 Hz
Response time 1 ms
Readiness delay 100 ms
Type of connection Cable
Cable length 6,000 mm
Number of conductors 5 -wire
Dimension (W x H x L) 20 mm x 80 mm x 42.2 mm
Housing material Metal
Metal housing Diecast zinc
Lens cover material Glass
Net weight 140 g
Housing color Red
Ambient temperature, operation -20 … 60 °C
Ambient temperature, storage -30 … 70 °C
Degree of protection IP 67
Protection class I
Standards applied IEC 60947-5-2

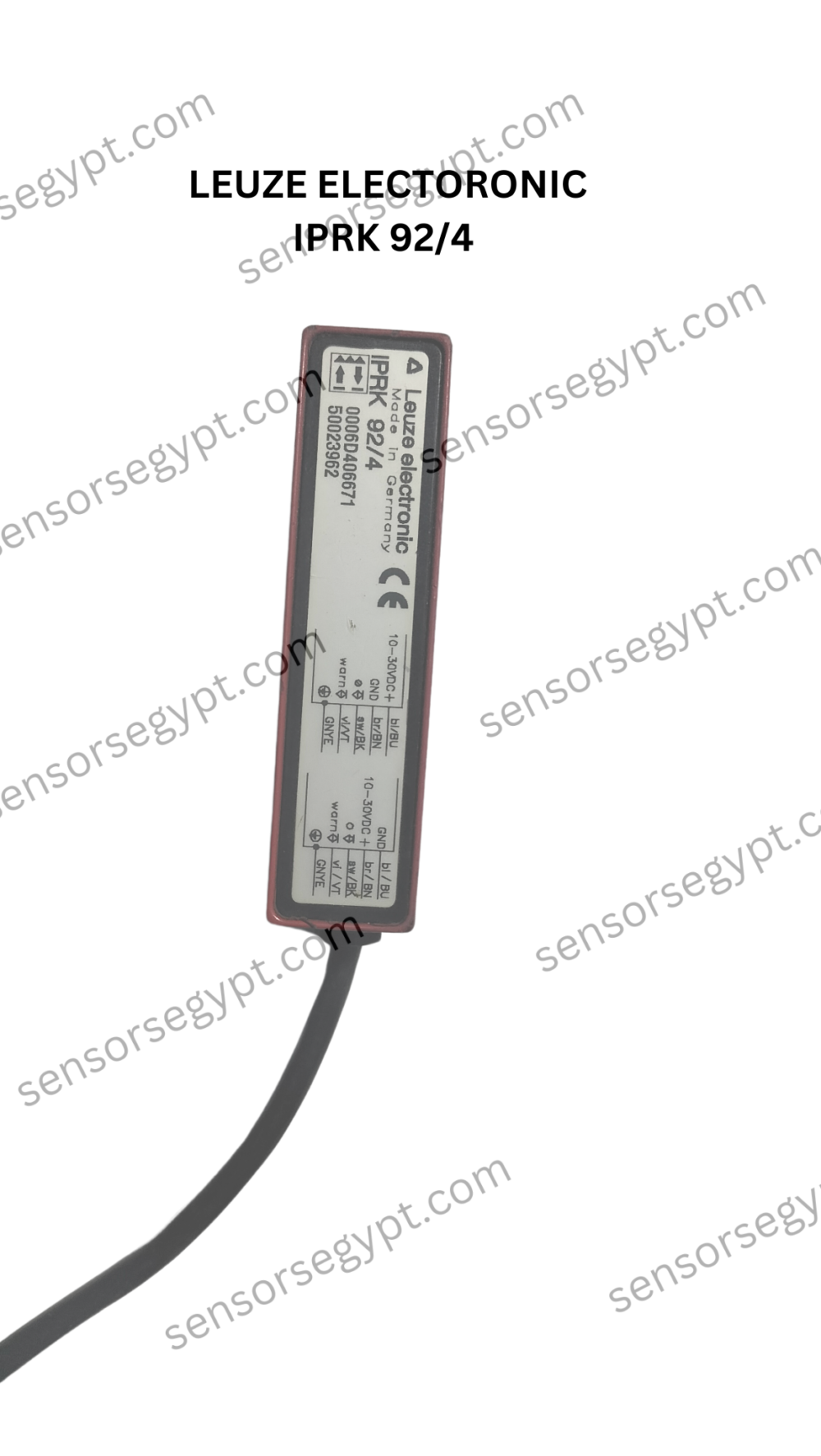

LEUZE IPRK 92/4.8 S

LEUZE IPRK 92/4 S.1

LEUZE ELECTORONIC IPRK 95/44 L.2
