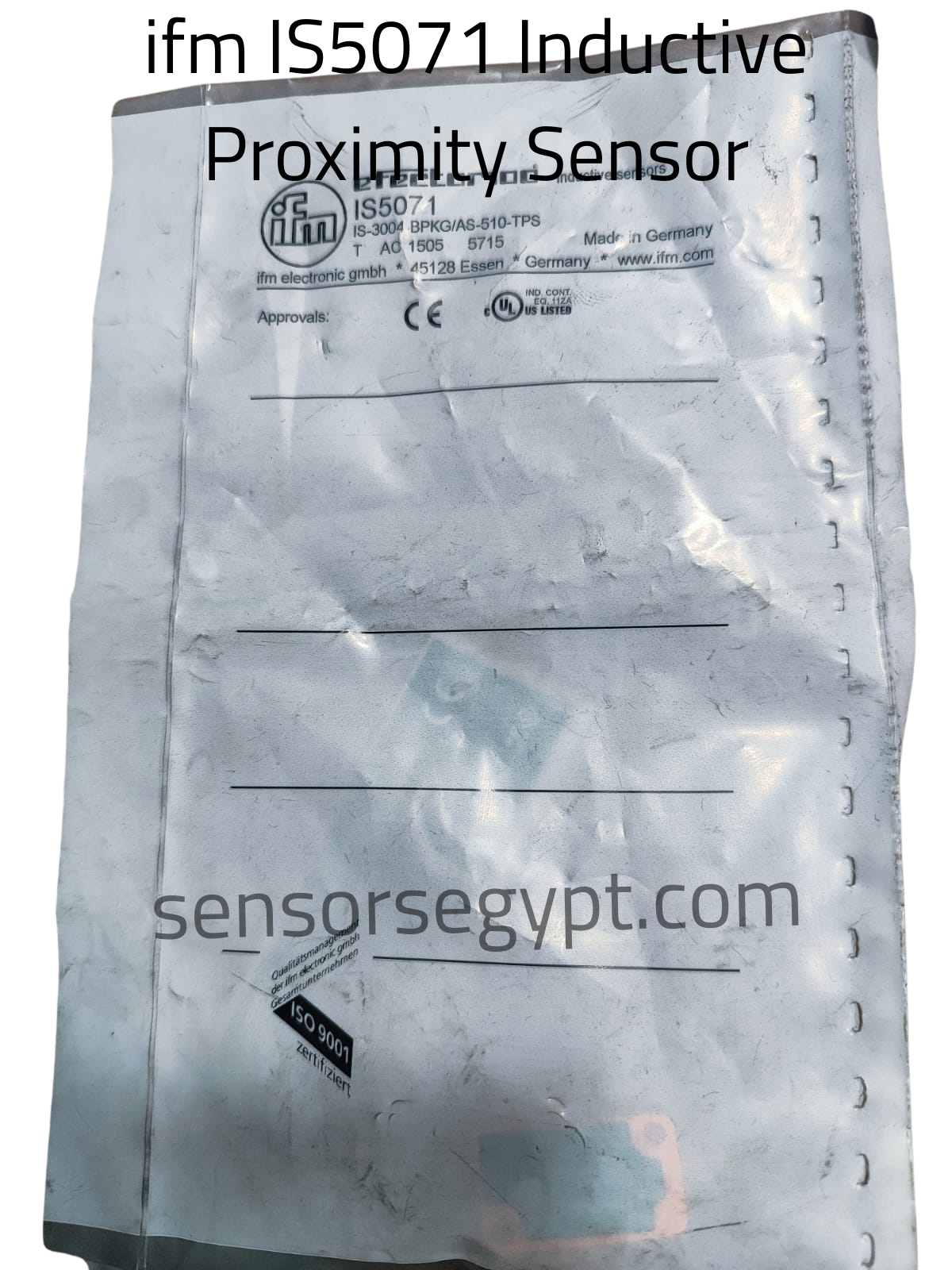

Technical Datasheet: ifm IS5071

Model/Type: IS-3004-BPKG/AS-510-TPS (efector100 series)

1. Product Characteristics & Application

• Sensor Type: Inductive Proximity Sensor

• Housing Design: Rectangular / Cuboid compact flat housing profile

• Sensing Range (Sn): 4 mm

• Mounting: Flush mountable (f)

• Application: Space-restricted machinery installations, robotic arms, linear actuators, and high-density factory automation setups.

2. Electrical Data

• Operating Voltage (Ub): 10…36 V DC

• Electrical Design: DC PNP

• Output Function: Normally Open (NO)

• Current Consumption: < 15 mA

• Reverse Polarity Protection: Yes

3. Outputs

• Max. Voltage Drop (Ud): < 2.5 V

• Permanent Current Rating (Ie): 200 mA

• Switching Frequency: 1400 Hz (High-speed capability)

• Short-Circuit Protection (SCP): Yes (Pulsed)

• Overload Protection: Yes

4. Detection Zone & Target Factors

• Real Sensing Range (Sr): 4 mm ± 10%

• Operating Distance (Sa): 0…3.25 mm

• Correction Factors:

  • Mild Steel: 1.0

  • Stainless Steel: approx. 0.7

  • Brass: approx. 0.4

  • Aluminium: approx. 0.3

  • Copper: approx. 0.2

5. Mechanical & Environmental Data

• Housing Material: Robust PBT (plastic) or Die-cast zinc alloy

• Ambient Operating Temperature: -25…70°C

• Ingress Protection (IP Rating): IP 67

6. Electrical Connection & Wiring Layout

The sensor relies on standard M12 connector specifications or a 3-wire system configuration.

Pinout Assignment:

• Pin 1 (Brown): → +L (10…36 V DC Power Supply)

• Pin 4 (Black): → Output (Load / PNP Switching)

• Pin 3 (Blue): → -L (0 V Ground / Common)

       [ Pin 1 ] ─────── ( + L )
          │
      ┌───┴───┐
      │  PNP  │───────── [ Pin 4 ] ──── [ Load ] ────┐
      │  N.O. │                                      │
      └───┬───┘                                      │
          │                                          │
       [ Pin 3 ] ────────────────────────────────────┴─── ( - L )
