Technical Datasheet: JAKO Dual Mano-Thermometer

Product Overview

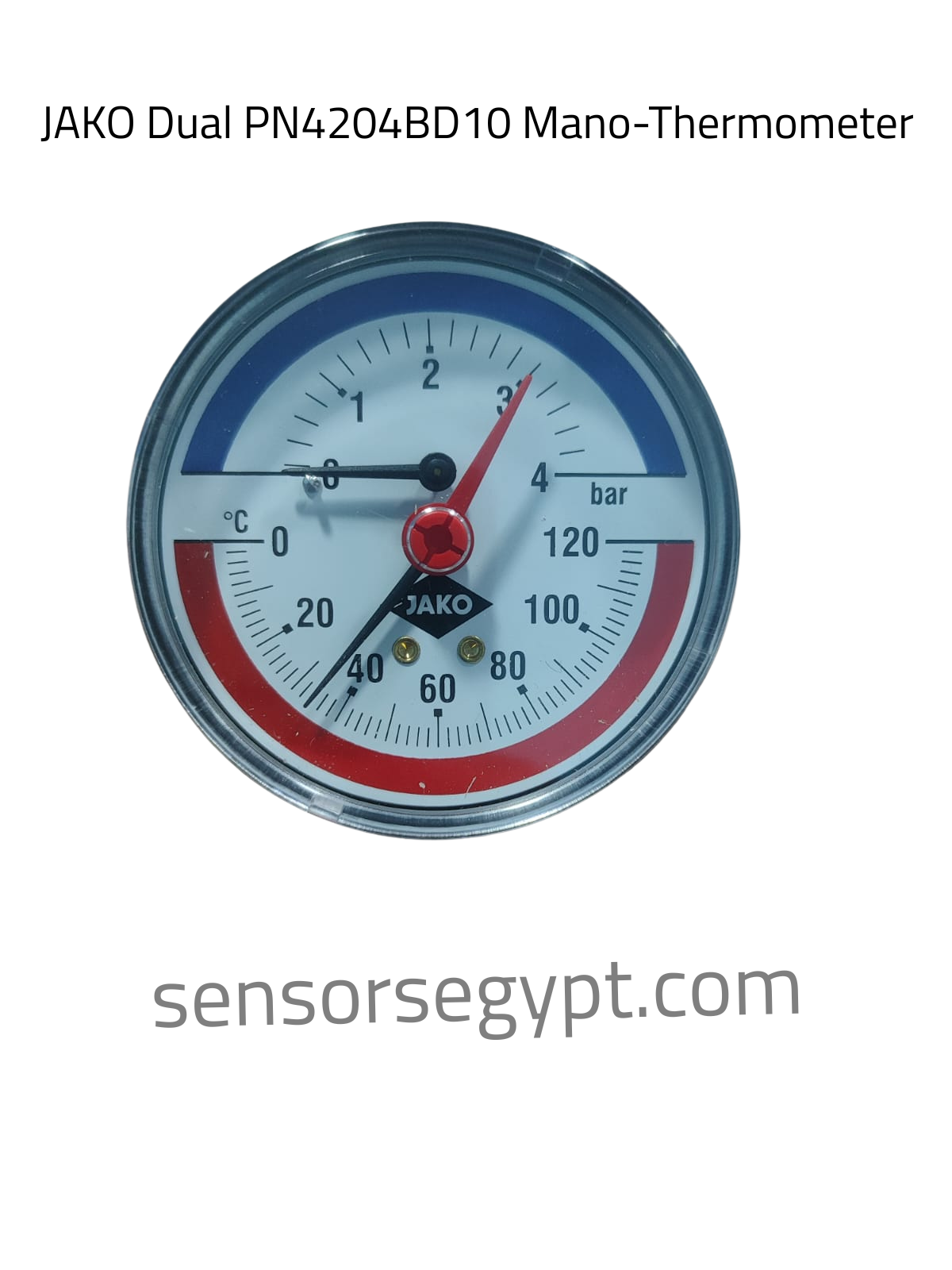

The PN4204BD10 is an industrial-grade dual-indication instrument (Mano-Thermometer / Thermomanometer) manufactured by JAKO Messtechnik. This specialized mechanical gauge combines static fluid pressure and media temperature readings onto a single dial face. It is primarily engineered for closed heating circuits, boiler tracking, and commercial HVAC infrastructure.

Technical Specifications

Key Identification

• Manufacturer: JAKO Messtechnik GmbH (Austria)
• Model Code: TIM-ABS 80 0-4/0-120° BAR/°C
• Part / Ordering Number: PN4204BD10
• Material Number: 10022078
• EAN / Barcode: 3800152525829

Dual Measurement Ranges

• Pressure Range (Blue Scale): 0 to 4 bar
• Temperature Range (Red Scale): 0°C to 120°C

Mechanical & Connection Properties

• Nominal Size (Case Diameter): 80 mm
• Process Connection Thread: G1/2 B (Standard 1/2″ BSP Male thread)
• Connection Type: Centric Rear / Back entry
• Measuring Principles:
  • Pressure: Elastic Bourdon tube deformation element.
  • Temperature: Helically arranged bimetallic strip system.
• Internal Wetted Materials: Copper alloy (pressure connection pin and internal components).

Part Number & Dial Code Breakdown

Segment Code	Value	Description
TIM-ABS	Product Type	Thermomanometer / Mano-Thermometer variant
80	Dial Diameter	Nominal case size of 80 mm
0-4	Pressure Limit	Maximum rated layout up to 4 bar (Blue Indicator)
0-120°	Temperature Limit	Maximum scale reading up to 120°C (Red Indicator)
G1/2B	Process Thread	Standard G1/2 Parallel gas thread entry

Installation & Structural Safeguards

• Dual Pointer System: Uses a standard black anodized pointer for mechanical line pressure, and a bright red needle tracking temperature expansion.
• Dial Safety Colors: Visual blue zone arch highlighting safe operational pressure ceilings; red zone highlighting thermal ceilings.
• Housing Class: Sealed steel case design, intended for climate-protected indoors, mechanical pump stations, and utility headers.
