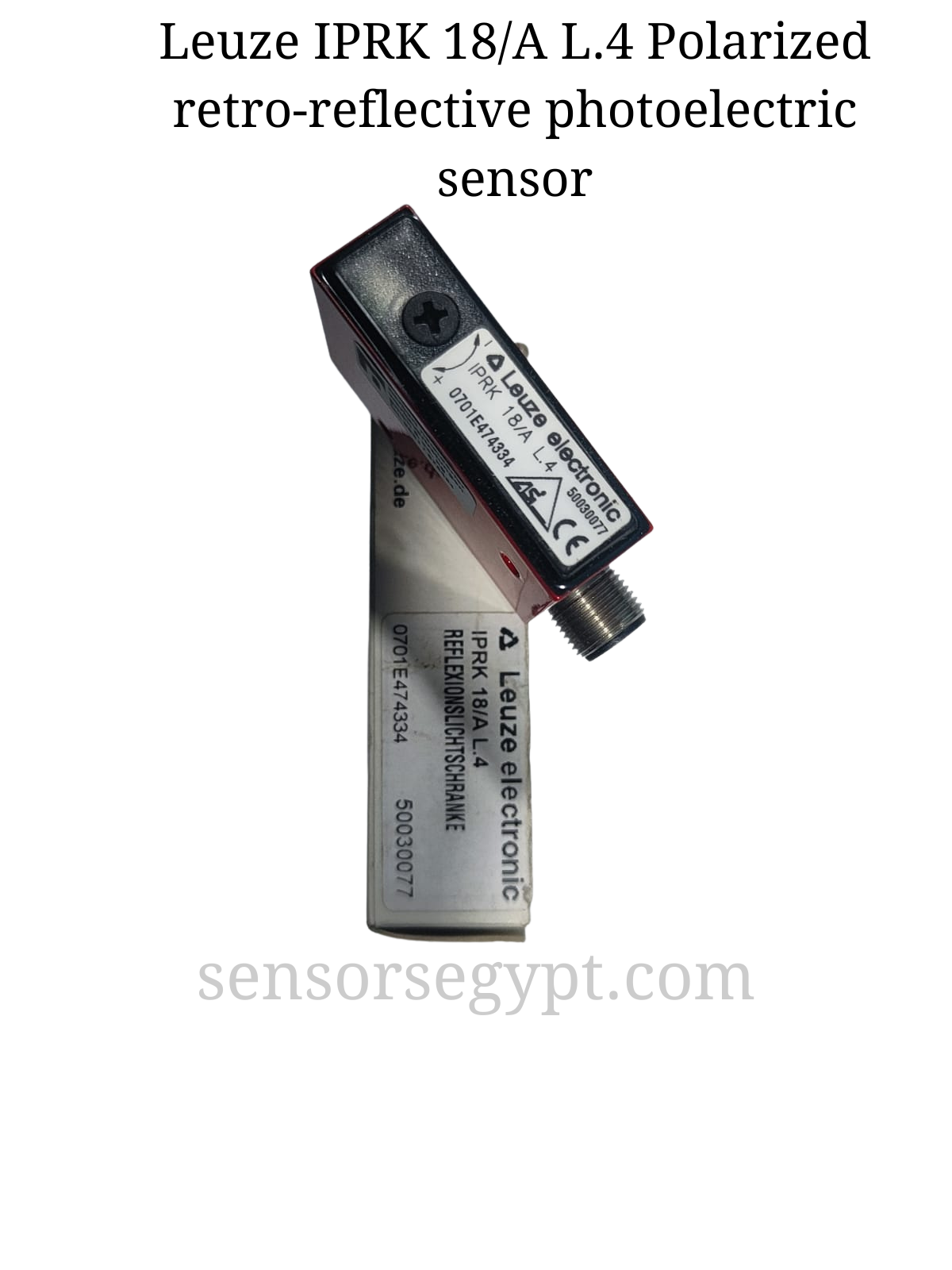

Leuze electronic Retro-Reflective Sensor (AS-i)



Model: IPRK 18/A L.4

Part Number: 50030077

---

1. General Description



The Leuze IPRK 18/A L.4 is a retro-reflective photoelectric sensor designed for integration into AS-Interface (Actuator Sensor Interface) networks. It requires a reflector to operate.

Unlike standard sensors that wire directly to a PLC input card, this sensor connects to the yellow AS-i bus cable. It features a polarization filter, allowing it to reliably detect shiny or reflective objects (like shrink-wrapped pallets or metal cans) without false triggering.

Key Features 🎯



• AS-Interface Integrated: Directly connects to the AS-i bus system, reducing wiring complexity.

• Polarized Retro-Reflective: Detects shiny objects reliably using a polarization filter.

• Visible Red Light: Uses a bright LED light source for easy alignment with the reflector.

• Sensitivity Adjustment: Features a potentiometer for fine-tuning the sensing range.

• Robust Housing: Standard 18-series rectangular housing with metal M12 connector.

---

2. Technical Specifications



Optical Data



Parameter	Value
Operating Principle	Retro-reflective (requires reflector)
Operating Range	0 … 3.0 m (Typical with standard reflector TK(S) 100×100)
Light Source	LED, Red (Visible)
Wavelength	660 nm

Electrical Data (AS-Interface)



Parameter	Value
Interface Type	AS-Interface
Supply Voltage	26.5 … 31.6 V DC (via AS-i Bus)
Current Consumption	< 40 mA
AS-i Profile	S-D.0.0 (Typical for this generation)
Cycle Time	< 5 ms

Mechanical & Environmental Data



Parameter	Value
Housing Design	Cubic / Rectangular (Series 18)
Housing Material	Plastic (ABS)
Lens Material	Plastic (PMMA)
Connection	M12 Connector, 4-pin (Metal thread)
Protection Class	IP 67
Ambient Temperature	-25 … +55 °C

---

3. Wiring (AS-Interface M12)



This sensor connects to the AS-i bus. It does not use standard PNP/NPN wiring.

• Pin 1: AS-i + (Brown)

• Pin 2: Not used

• Pin 3: AS-i – (Blue)

• Pin 4: Not used

(Note: Data and Power are transmitted over the same two wires).

---
