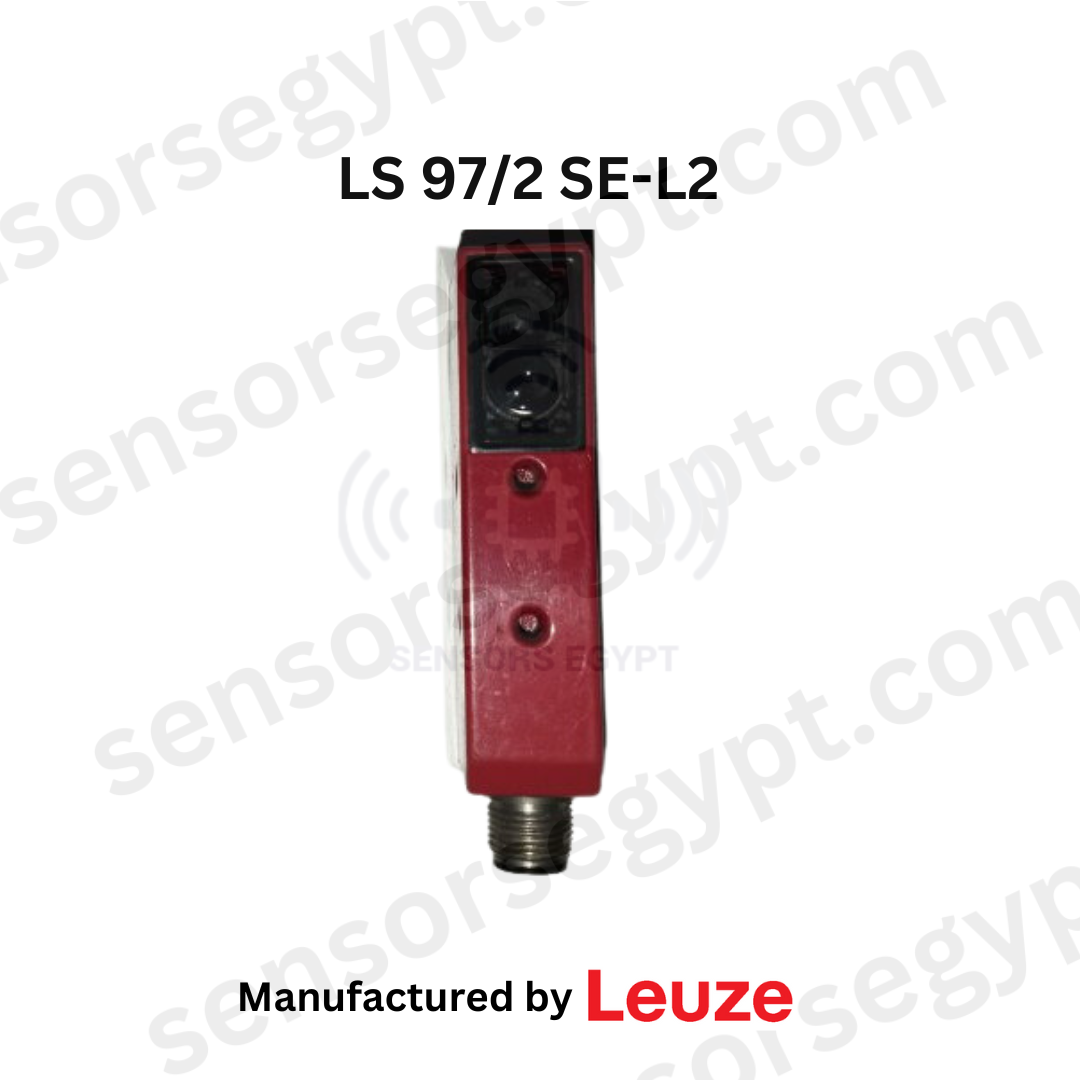

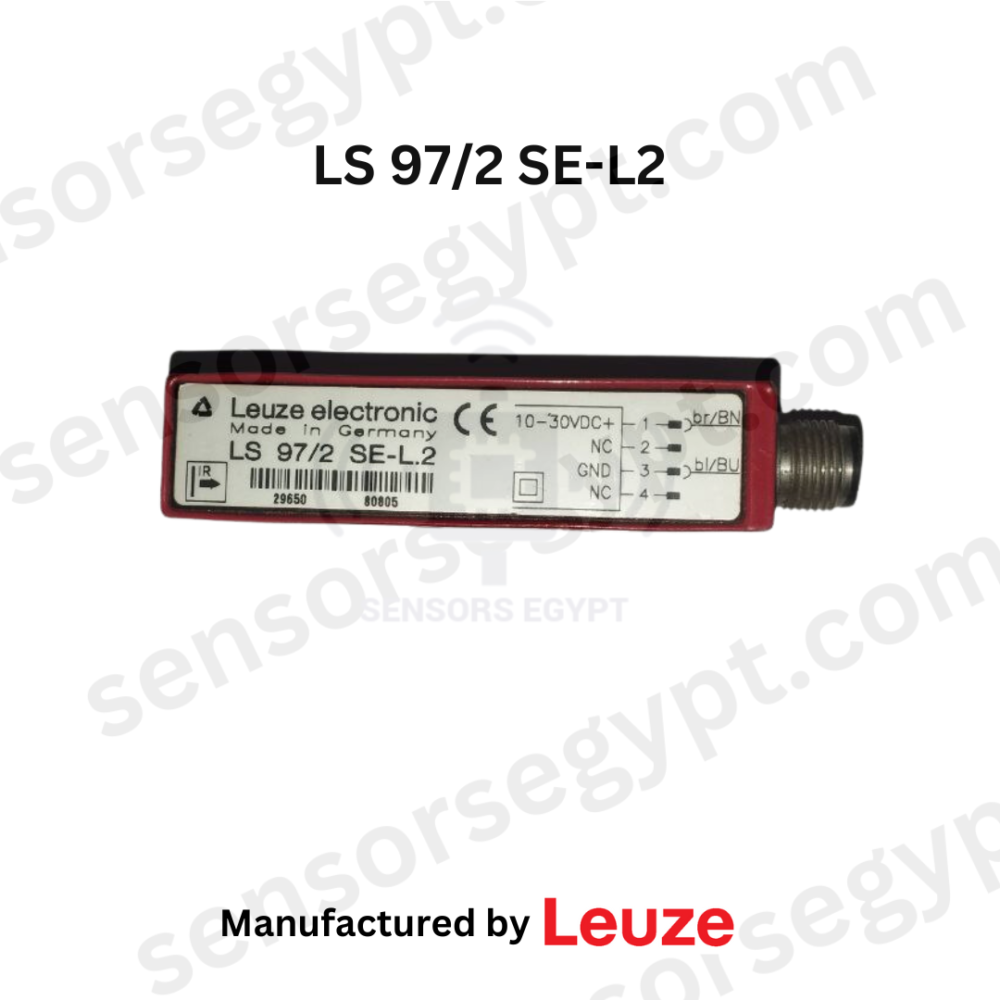

NEW LEUZE LS 97/2 SE-L.2 Throughbeam photoelectric sensor transmitter
Basic data
| Series | 97 |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0 … 3.5 m |
| Operating range limit | 0 … 6 m |
| Light source | LED, Infrared |
| Protective circuit | Polarity reversal protection Short circuit protected |
| Supply voltage UB | 10 … 30 V, DC |
| Residual ripple | 0 … 15 %, From UB |
| Open-circuit current | 0 … 40 mA |
| Switching frequency | 200 Hz |
| Response time | 2.5 ms |
| Type of connection | Connector |
| Thread size | M12 |
| Material | Metal |
| No. of pins | 4 -pin |
| Dimension (W x H x L) | 18 mm x 75 mm x 23 mm |
| Housing material | Metal |
| Metal housing | Diecast zinc |
| Lens cover material | Glass |
| Net weight | 85 g |
| Type of fastening | Through-hole mounting Via optional mounting device |
| Ambient temperature, operation | -20 … 60 °C |
