Features

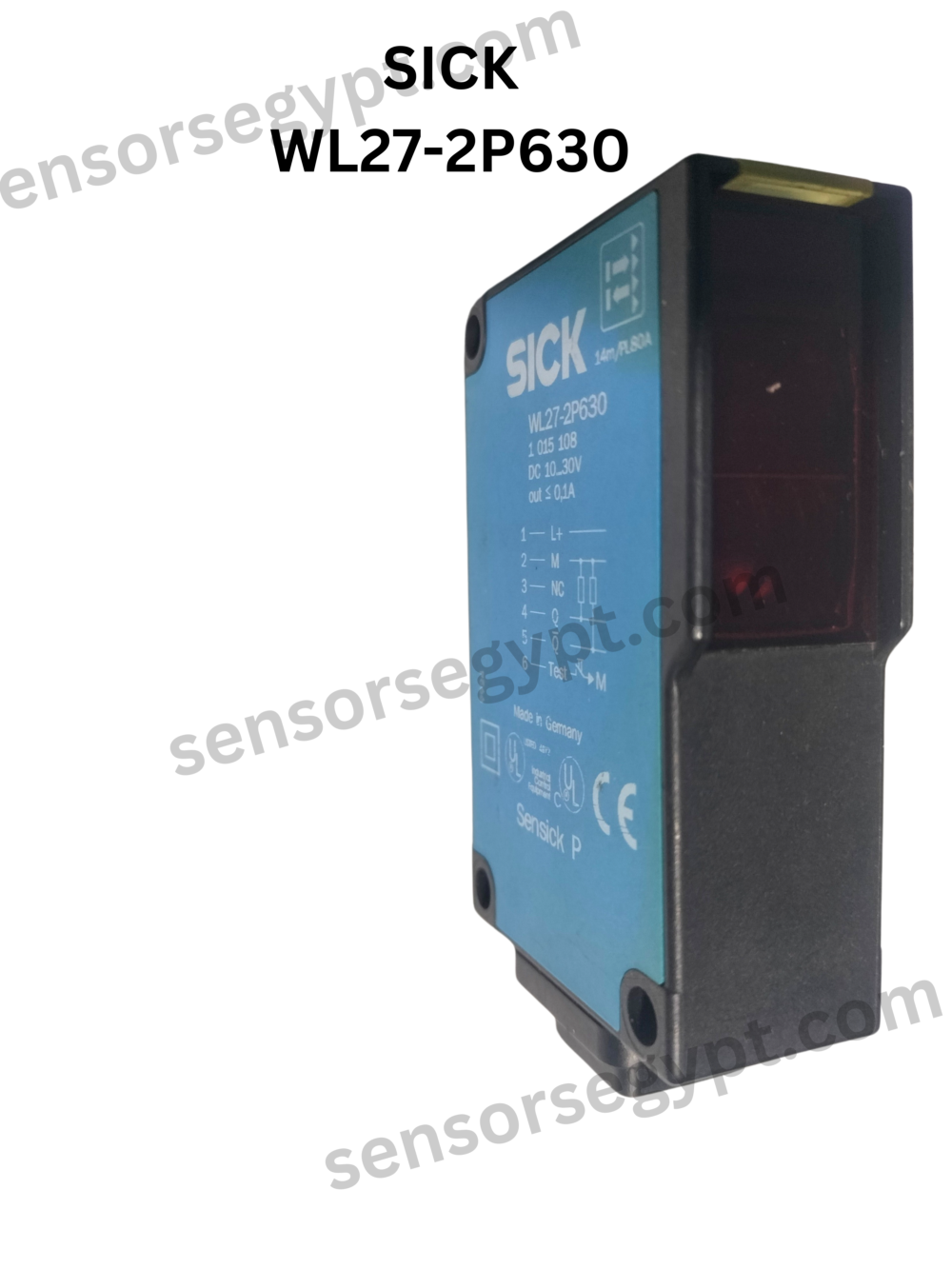

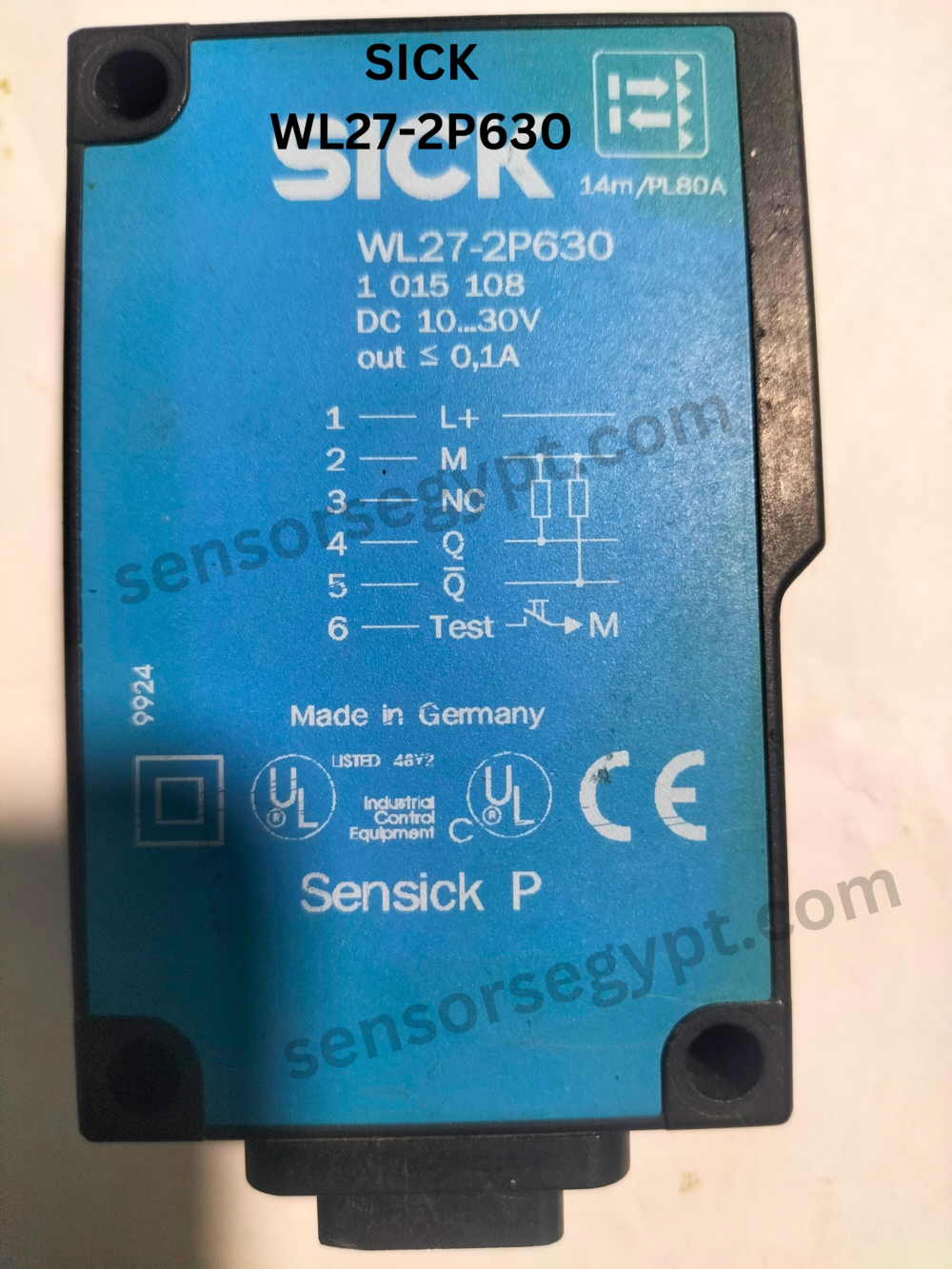

Functional principle Photoelectric retro-reflective sensor
Dimensions (W x H x D) 24.6 mm x 80 mm x 53.5 mm
Housing design (light emission) Rectangular
Sensing range max. 0.1 m … 14 m 1)
Sensing range 0.1 m … 10 m 1)
Type of light Visible red light
Light source LED
Adjustment Potentiometer
1) Reflector PL80A.
Mechanics/electronics
Supply voltage 10 V DC … 30 V DC
Current consumption 25 mA 1)
Switching output PNP
Switching mode Light/dark switching
Response time ≤ 500 µs 2)
Connection type Connector Q6, 6-pin, DC-coding
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP65
Ambient operating temperature –40 °C … +60 °C
Ambient temperature, storage –40 °C … +75 °C
UL File No. NRKH.E181493 & N

SICK WL27-2F440 10-30V 0, 1A PHOTOELECTRIC SENSOR
