Technical Datasheet: TURCK BI2U-EG08-AP6X-H1341

Series: uprox® 3 (Generation 3 Factor 1 Sensor)

Ident-No.: 4602034

1. Product Characteristics & Application

• Sensor Type: Inductive Proximity Sensor

• Housing Design: Threaded barrel type (M8 × 1) with a high-grade stainless steel barrel (EG designator).

• Sensing Range ($S_n$): 2 mm (Extended sensing range for M8 flush size)

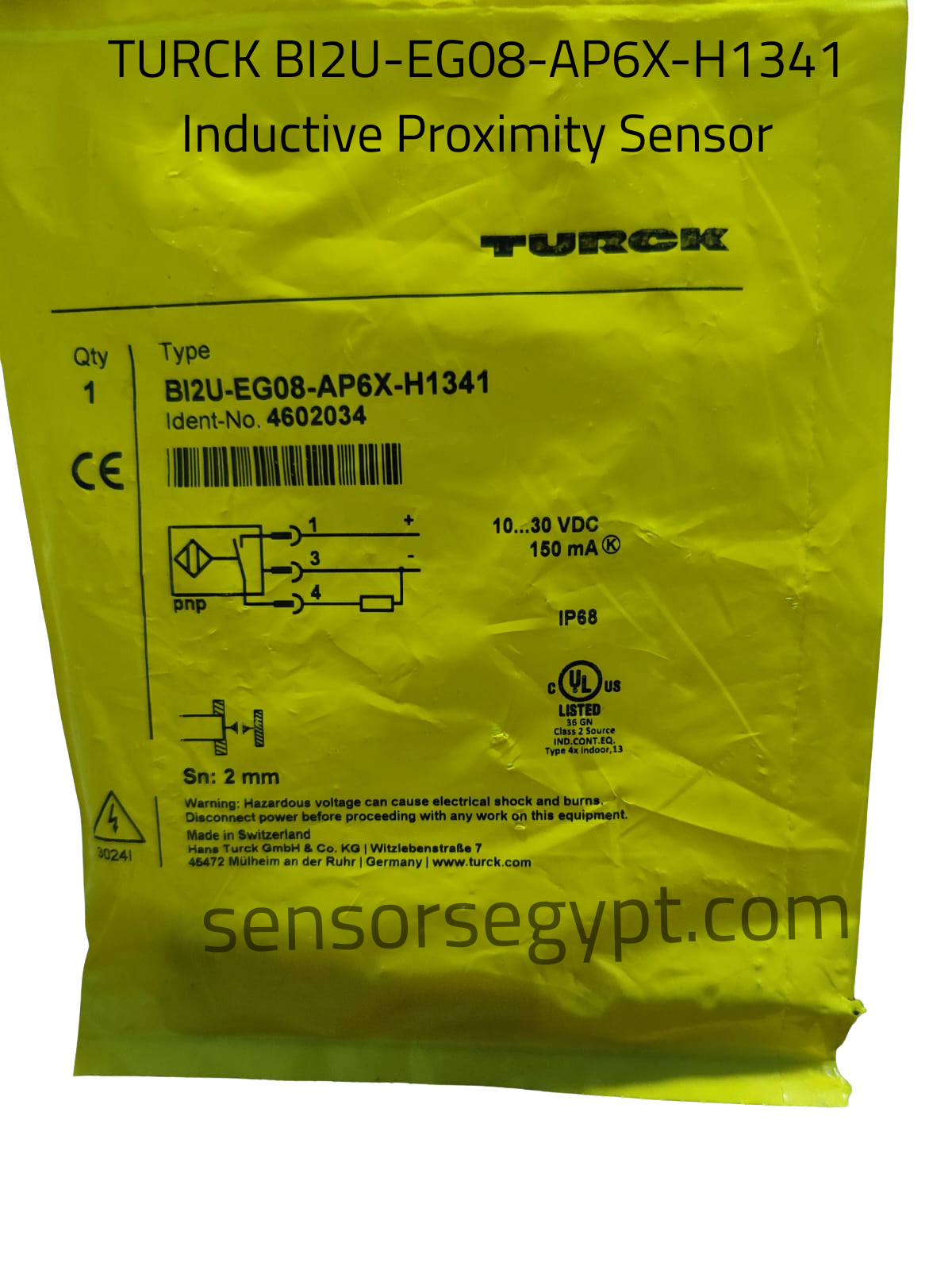

• Mounting: Flush mountable (indicated by the flush installation graphic layout on the packaging label).

• Special Features: uprox® 3 technology (Factor 1) — detects all magnetic and non-magnetic metals (steel, stainless steel, brass, aluminum, copper) at the exact same extended distance of 2 mm without any reduction factor. Built with a high-grade stainless steel housing (EG08 series), it provides ultimate immunity to strong DC and AC magnetic fields (weld-field immune), making it a perfect fit for space-restricted automotive welding applications, robot grippers, and high-density machinery.

2. Electrical Data

• Operating Voltage: 10…30 V DC

• Rated Current Consumption: ≤ 150 mA

• Electrical Design: DC PNP

• Output Function: Normally Open (NO)

• Protection Class: Class 2 Source compliant (UL listed, 36GN) / Type 4x indoor, 13

3. Performance & Dynamic Data

• Switching Frequency: High response frequency optimized for high-speed target verification, rapid counting loops, and precise positioning feedback.

• Short-Circuit Protection (SCP): Yes (Pulsed)

• Overload & Reverse Polarity Protection: Yes

4. Mechanical & Environmental Data

• Dimensions: M8 × 1 mm thread / Premium stainless steel barrel construction

• Ambient Operating Temperature: -30 °C…85 °C

• Ingress Protection (IP Rating): IP68

• Country of Origin: Made in Switzerland

• Item Code / Batch: 3024I

5. Electrical Connection & Wiring Layout

The sensor features an integrated standard male thread connector head (M12 × 1, 3-pin configuration).

Pinout Assignment:

• Pin 1: Brown wire → + (10…30 V DC Power Supply)

• Pin 3: Blue wire → – (0 V Ground / Common)

• Pin 4: Black wire → Output Switching Signal (Load)

Wiring Diagram:

       [ Pin 1 ] ───────────────────────── ( + )
          │
      ┌───┴───┐
      │  PNP  │───────── [ Pin 4 ] ──── [ Load ] ────┐
      │  N.O. │                                      │
      └───┬───┘                                      │
          │                                          │
       [ Pin 3 ] ────────────────────────────────────┴─── ( - )
