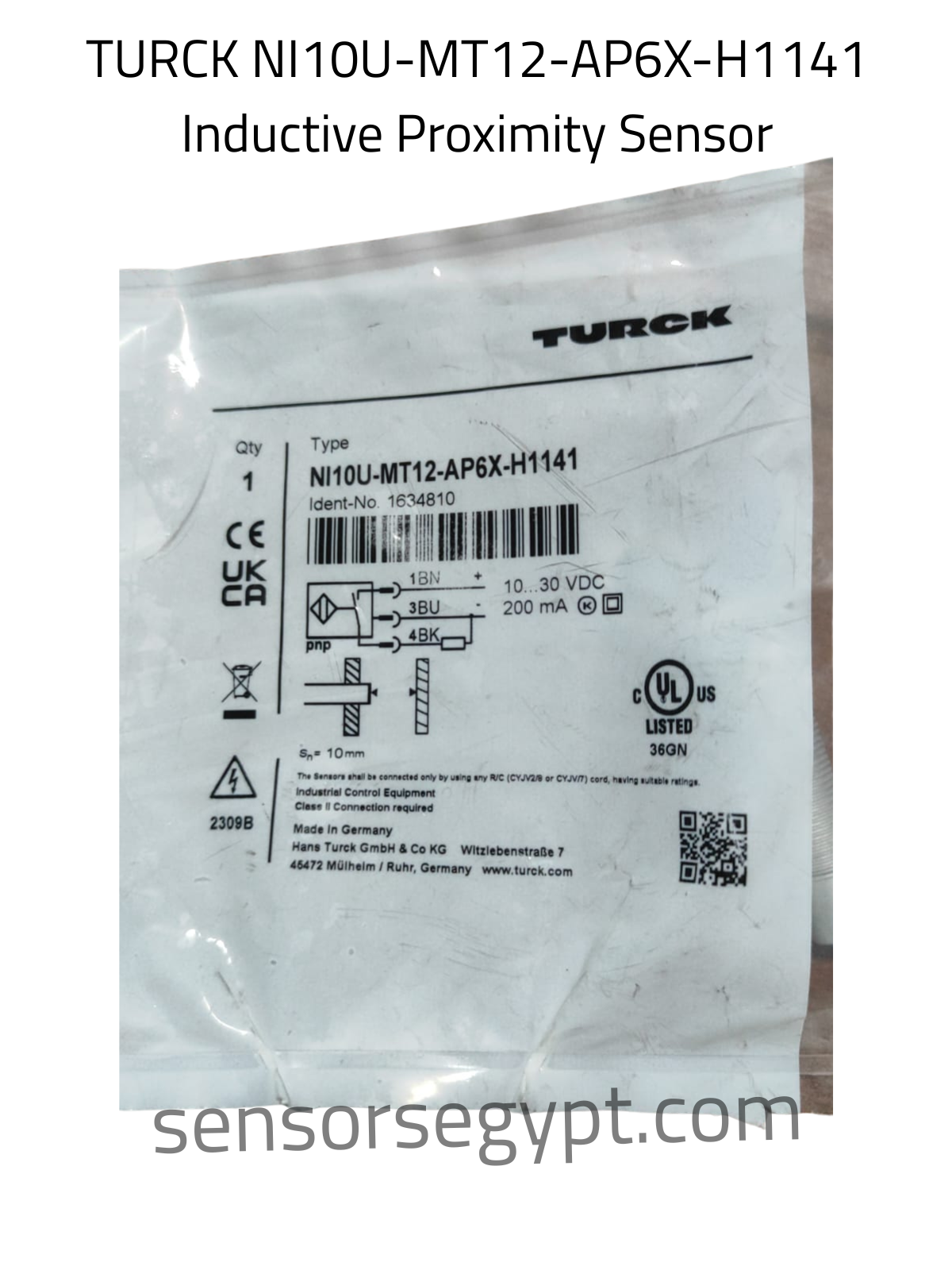

Technical Datasheet: TURCK NI10U-MT12-AP6X-H1141

Series: uprox®+ (Extended Range Factor 1 Sensor)

Ident-No.: 1634810

1. Product Characteristics & Application

• Sensor Type: Inductive Proximity Sensor

• Housing Design: Threaded barrel type (M12 × 1)

• Sensing Range ($S_n$): 10 mm (Ultra-extended sensing range for M12 size)

• Mounting: Non-flush mountable (indicated by the non-flush diagram layout on the label).

• Special Features: uprox®+ technology (Factor 1) — detects all magnetic and non-magnetic metals (steel, stainless steel, brass, aluminum, copper) at the exact same ultra-extended distance of 10 mm without any reduction factor. It provides maximum mounting flexibility, exceptional magnetic field immunity (weld-field immune), and features a robust chrome-plated or PTFE-coated brass barrel.

2. Electrical Data

• Operating Voltage: 10…30 V DC

• Rated Current Consumption: ≤ 200 mA

• Electrical Design: DC PNP

• Output Function: Normally Open (NO)

• Protection Class: Class II Connection required / Double insulated (UL listed, 36GN)

3. Performance & Dynamic Data

• Switching Frequency: Highly responsive output frequency optimized for long-range high-speed target verification.

• Short-Circuit Protection (SCP): Yes

• Overload & Reverse Polarity Protection: Yes

4. Mechanical & Environmental Data

• Dimensions: M12 × 1 mm thread / Standard compact length barrel

• Housing Material: High-grade metal, Marine-grade Brass (Chrome-plated / PTFE coated)

• Ambient Operating Temperature: -30 °C…85 °C

• Country of Origin: Made in Germany

• Item Code / Batch: 2309B

5. Electrical Connection & Wiring Layout

The sensor features an integrated standard male circular connector head (M12 × 1, 3-pin configuration).

Pinout Assignment:

• Pin 1 (BN): Brown wire → + (10…30 V DC Power Supply)

• Pin 3 (BU): Blue wire → – (0 V Ground / Common)

• Pin 4 (BK): Black wire → Output Switching Signal (Load)

Wiring Diagram:

       [ Pin 1 / BN ] ───────────────────────── ( + )
              │
          ┌───┴───┐
          │  PNP  │───────── [ Pin 4 / BK ] ──── [ Load ] ────┐
          │  N.O. │                                          │
          └───┬───┘                                          │
              │                                              │
       [ Pin 3 / BU ] ───────────────────────────────────────┴─── ( - ) DATA SHEET
