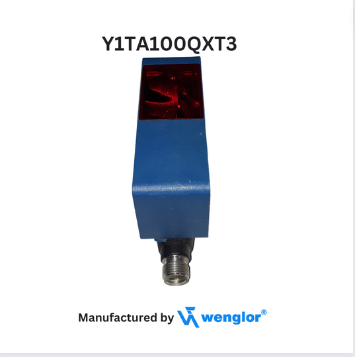

Optical Data |
|
|---|---|
| Working Range | 0.1 … 10.1 m |
| Measuring Range | 10 m |
| Resolution | 1 … 12 mm |
| Linearity | 0.5 % |
| Linearity Deviation | 50 mm |
| Switching Hysteresis | 3 … 20 mm |
| Light Source | Laser (red) |
| Wavelength | 660 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 2 |
| Max. Ambient Light | 10,000 Lux |
| Beam Divergence | < 2 mrad |
| Light Spot Diameter | see Table 1 |
Electrical Data |
|
|---|---|
| Supply Voltage | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 100 mA |
| Switching Frequency | 50 Hz |
| Measuring Rate | 1 … 100 /s |
| Response Time | 10 … 200 ms |
| On-/Off-Delay | 0 … 10,000 ms |
| Temperature Drift (-10 °C < Tu < 50 °C) | < 0.2 mm/K |
| Temperature Drift (Tu < -10 °C, Tu > 50 °C) | < 0.4 mm/K |
| Temperature Range | -25 … 60 °C |
| Number of Switching Outputs | 2 |
| Switching Output Voltage Drop | < 2.5 V |
| Switching Output/Switching Current | 200 mA |
| Analog Output | 0…10 V |
| Short Circuit Protection | yes |
| Reverse Polarity and Overload Protection | yes |
| Protection Class | III |
| FDA Accession Number | 0710891-002 |
Mechanical Data |
|
|---|---|
| Setting Method | Menu (OLED) |
| Housing Material | Plastic |
| Degree of Protection | IP68 |
| Connection | M12 × 1; 4-pin |
Safety-relevant Data |
|
|---|---|
| MTTFd (EN ISO 13849-1) | 346.68 a |
Output |
|
|---|---|
| Error Output | yes |
| PNP NO | yes |
| Configurable as PNP/NPN/Push-Pull | yes |
| Analog Output | yes |
Adjustable parameters |
|
|---|---|
| Analog output | 0…10 V 4…20 mA |
| Output | Analog Output Error Output Push-pull NPN PNP |
