## Key Specifications



• Manufacturer: ADZ NAGANO

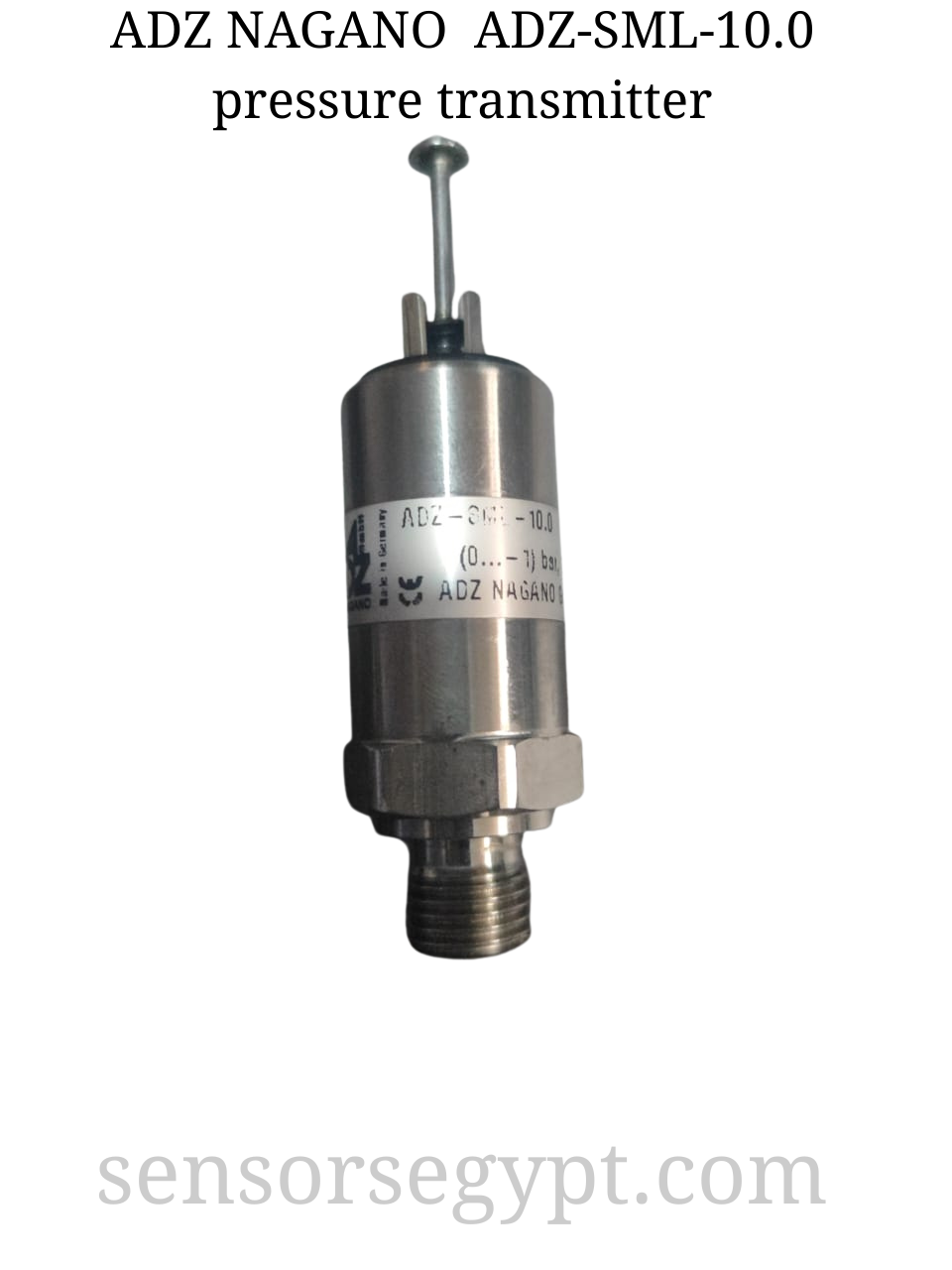

• Model Series: ADZ-SML (this specific unit is model ADZ-SML-10.0)
• Application: General industrial pressure measurement (e.g., hydraulics, pneumatics, process control).
• Pressure Range: 0 to 1 bar (as printed on the label).
• Output Signal: the ADZ-SML series is commonly available with one of the following standard industrial outputs:
  • 4-20 mA (2-wire current loop)
• Power Supply: The required supply voltage depends on the output signal, but is typically in the range of 10 to 30 V DC.
• Accuracy: Typically around ±0.5% of the full scale.
• Process Connection: Threaded male fitting (appears to be a standard size like G 1/4″).
• Electrical Connection: The pins are configured for a standard industrial connector, most likely a DIN 43650 plug.
• Materials: The housing and wetted parts are typically made of stainless steel for compatibility with various media.

---



## Functionality



This pressure transmitter works by using an internal sensing element (typically a piezoresistive sensor on a stainless steel diaphragm) that deforms under pressure. The electronics inside the transmitter measure this deformation and convert it into a proportional electrical signal.

This standardized signal can be easily read by a PLC (Programmable Logic Controller), a digital display, or any other industrial control equipment to monitor or react to the system’s pressure.
