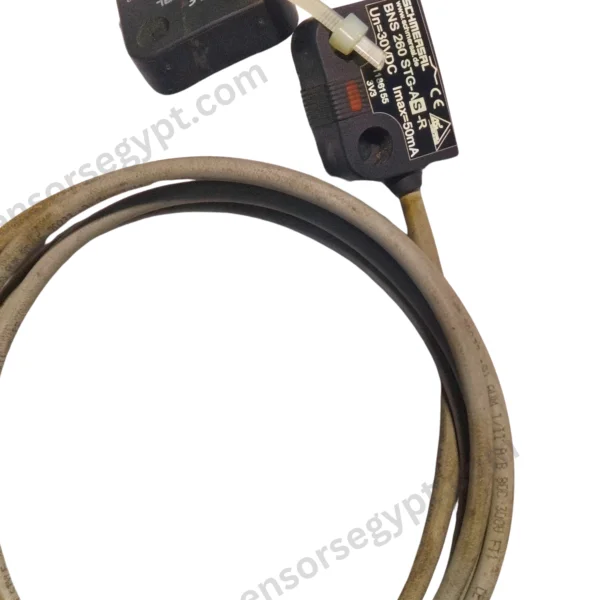

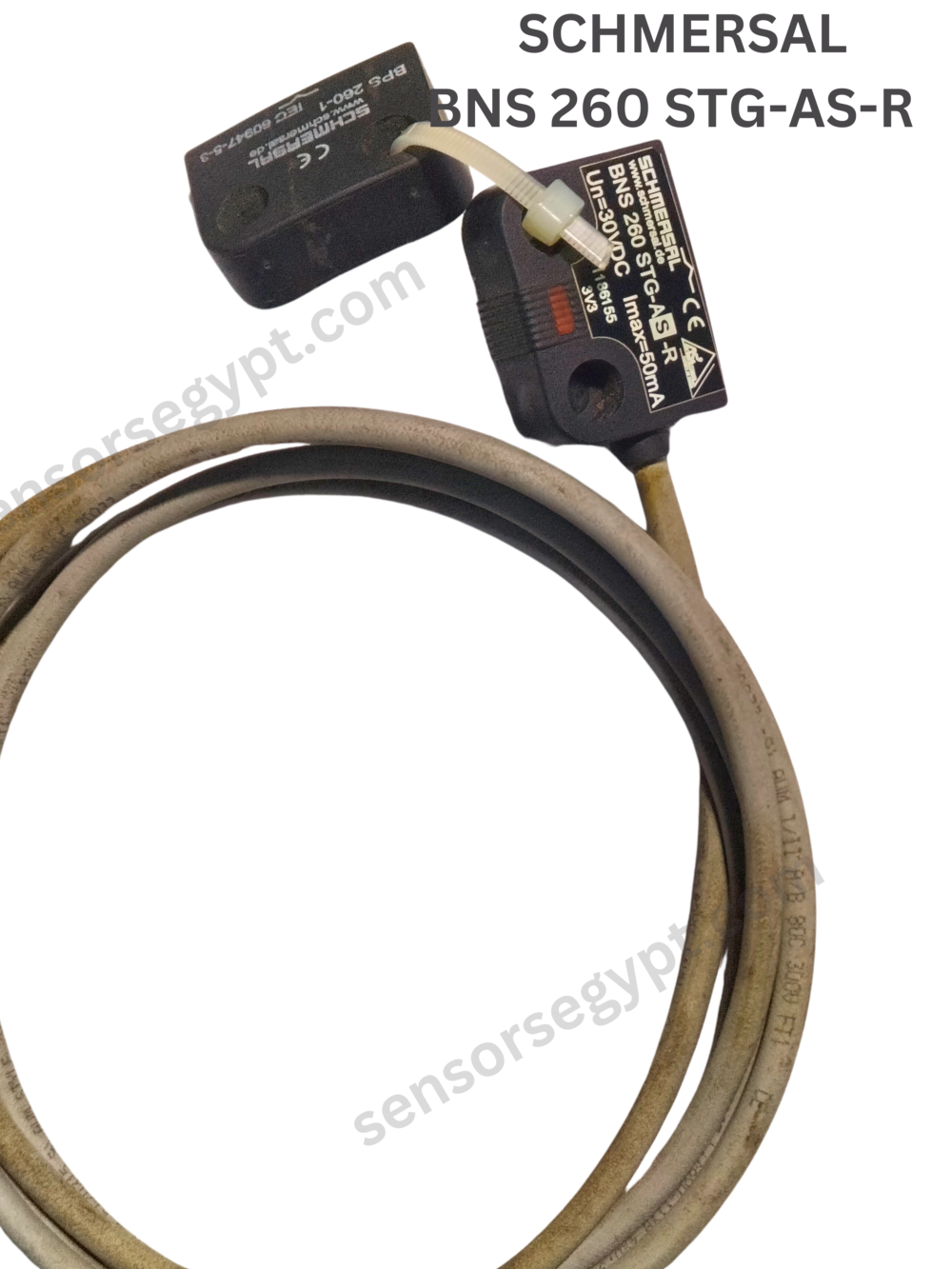

Design of electrical connection Pre-wired cable with connector M12, straight, 4-pole
Cable length 2
Conductors 2 x 0,23
AWG-Number 23
mechanical installation conditions quasi-flush
Ensured switch distance ON Sao 5 mm
Ensured switch distance OFF Sar 15 mm
Repeat accuracy R R R ≤ 0,1 x Sao
notice Axial misalignment
The safety sensor and the actuator tolerate a horizontal and vertical
misalignment to each other. The possible misalignment depends on the
distance of the active surfaces of the sensor and the actuator. The sensor
is active in the tolerance range.
Type of actuation Magnet
Direction of motion head-on with regard to the active surface
restistance to shock 30 g / 11 ms
Resistance to vibration 10 … 55 HZ, Amplitude 1 mm
Door hinge right
