Technical Datasheet: di-soric D7C 18 V 10 PSK-IBSL

Part Number / Type: D7C 18 V 10 PSK-IBSL

Product Category: Metal Sensing Proximity Switch (Induktiver Näherungsschalter)

1. Product Characteristics & Application

• Sensor Type: Inductive Proximity Sensor

• Housing Design: Threaded cylindrical barrel type (M18 designator indicated by the 18 in the part number).

• Sensing Range ($s_n$): 10 mm

• Mounting: Flush mountable (indicated by the label text: bündig einbaubar / noyable dans le métal / for flush mounting).

• Special Features: Part of di-soric’s reliable high-performance proximity line, engineered for contactless metal target verification. Its flush-mountable design allows it to be embeddable directly into metal machinery plates or brackets, providing excellent physical protection for the sensor face. Ideal for factory automation, conveyor sorting systems, material position monitoring, and machine tool indexing.

2. Electrical Data

• Operating Voltage ($U_B$): 10…30 V DC

• Rated Operational Current ($I_A$): $\le$ 200 mA max.

• Electrical Design: DC PNP

• Output Function: Normally Open (NO) (indicated by: PNP Schliesser / PNP à fermeture / PNP normally open).

• Approvals: CE Certified, ISO 9001 certified manufacturing tracking.

3. Performance & Indicators

• Status Indicator: Integrated functional LED feedback circuit (LED siehe Rückseite / LED voir verso / LED see over).

• Short-Circuit & Reverse Polarity Protection: Yes

• Switching Frequency: High responsive cyclic switching velocity optimized for rapid automation tracking, indexing steps, and dynamic feedback circuits.

4. Mechanical & Environmental Data

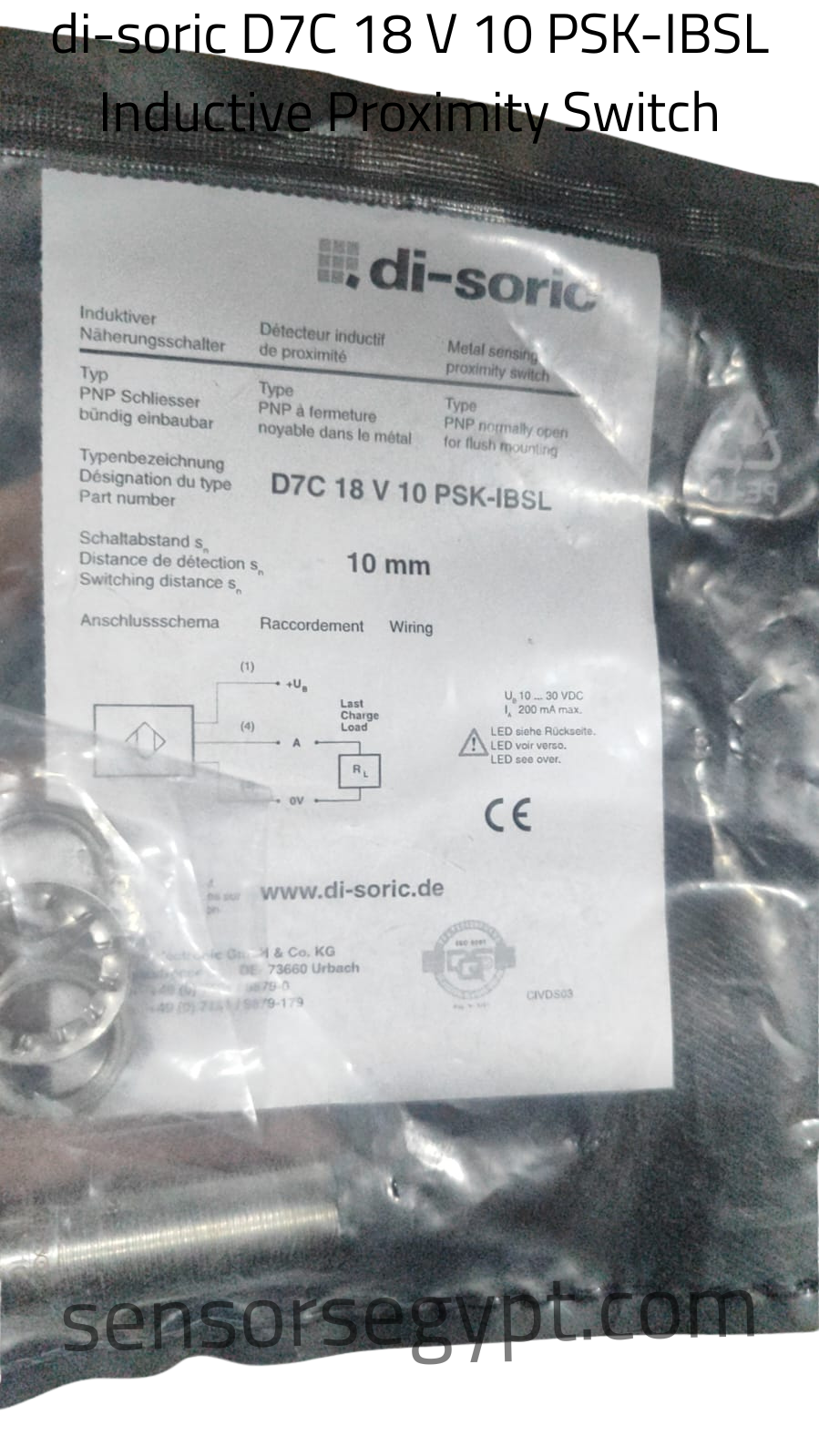

• Dimensions: M18 standard industrial metric threads (The metallic threaded barrel and mounting washers are visible inside the protective pouch packaging).

• Housing Material: Premium rugged metal alloy casing with high mechanical wear resistance.

• Ambient Operating Temperature: Standard automated industrial resilience profile.

• Manufacturer Location: di-soric Industrie-electronic GmbH & Co. KG | Steinbeisstrasse 6, DE-73660 Urbach, Germany.

• Code References: CIVDS03

5. Electrical Connection & Wiring Layout

The sensor utilizes a 3-pin operational output interface configuration via an integrated standard male plug terminal socket (-IBSL quick-disconnect connector designator).

Pinout Assignment:

• Pin 1: Brown wire reference $\rightarrow$ +$U_B$ (10…30 V DC Power Supply Input)

• Pin 4: Black wire reference $\rightarrow$ A (Active Normally Open Switching Output Signal to Last/Charge Load)

• Pin 3: Blue wire reference $\rightarrow$ 0V (Ground / Common Reference line)

Wiring Diagram:

       [ Pin 1 ] ───────────────────────── ( + UB )
          │
      ┌───┴───┐
      │  PNP  │───────── [ Pin 4 ] ──── [ Load / RL ] ───┐
      │  N.O. │                                        │
      └───┬───┘                                        │
          │                                            │
       [ Pin 3 ] ──────────────────────────────────────┴─── ( 0V )
